| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
96 pcs
|
96 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Stud | |
| Stud Size | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Thickness | |
| Width | |
| Wire Gauge |

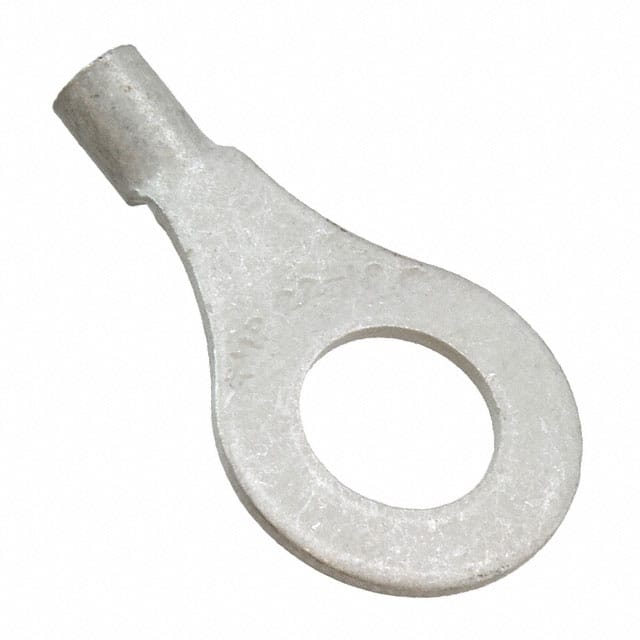

The TE Connectivity 130058 is a circular ring terminal designed for wire sizes 16-22 AWG and a 1/4 inch stud. This non-insulated terminal uses a crimp termination method and is constructed from copper with a tin finish. It features a brazed seam and serrated inner barrel for secure wire termination and mechanical integrity.
This free hanging, in-line mount terminal has overall dimensions of 21.84mm length, 11.91mm width, and 0.79mm thickness. The brazed seam ensures barrel strength, while the serrated termination provides a gas-tight connection with the conductor.
Commonly used in power distribution, automotive wiring, and industrial control panels, this terminal offers reliable performance in applications requiring a robust ring-style connection. The tin plating provides corrosion resistance and good solderability if needed.
It is compatible with 16-22 AWG wire.
The stud size is 1/4 inch.
No, it is non-insulated.
It uses a crimp termination.
Length is 21.84mm, width is 11.91mm, thickness is 0.79mm.
Copper with tin plating.
It has a brazed seam and serrated termination.
