| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,060 pcs
|
4060 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Flammability Rating | |
| Insulation | |
| Insulation Material | |
| Lead Style | |
| Length | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Standards | |
| Stud | |
| Stud Size | |
| Terminal Type | |
| Termination | |
| Thickness | |
| Voltage Rating | |
| Width | |
| Wire Gauge |

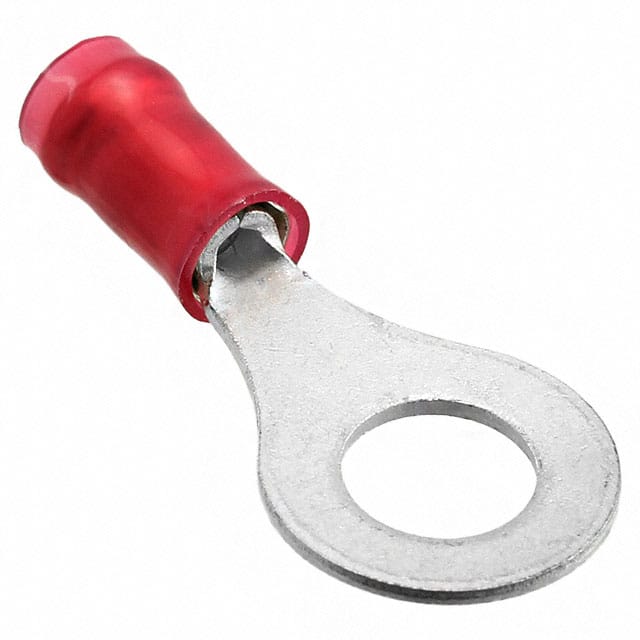

The TE Connectivity 130046 is a PIDG ring terminal designed for reliable connections in demanding environments. It features a circular tongue with an M6 stud size and accepts 16-22 AWG wire. The terminal is insulated with a red nylon sleeve rated UL 94V-2 and is crimp terminated for secure attachment.
Constructed from high conductivity copper with a tin-plated finish, the terminal body includes inner serrations for maximum electrical contact and tensile strength. A copper sleeve provides vibration resistance and improved wire insulation support. The operating temperature is 105°C with a voltage rating of 300V.
This terminal is part of TE Connectivity's PIDG family, designed for applications where high vibration and wire movement are factors. It meets UL/CSA, Mil-Spec, and SAE AS7928 standards. The red insulation color indicates 16-22 AWG wire size compatibility.
16-22 AWG.
M6.
300V.
105°C maximum.
Nylon, rated UL 94V-2.
UL/CSA, Mil-Spec, SAE AS7928.
