| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,300 pcs
|
3300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Finish | |
| Shell Material | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

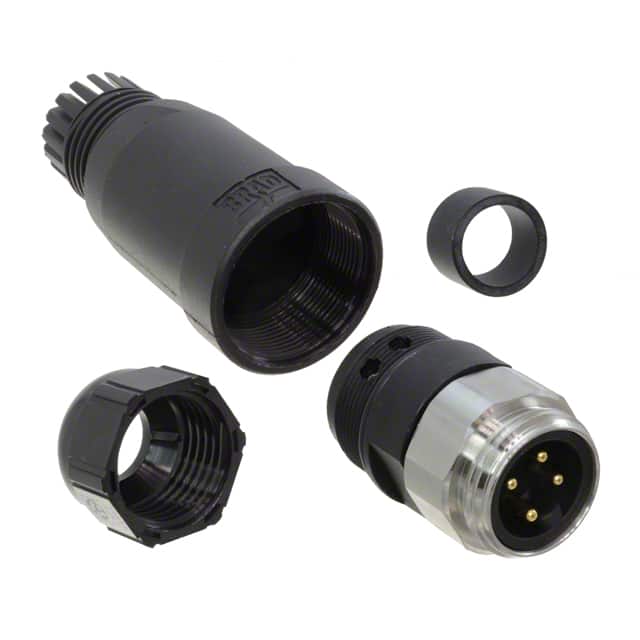

The Molex 1300170021 is a circular connector receptacle designed for reliable signal and power connections in harsh environments. It features 4 male pins with gold contacts for corrosion resistance and low contact resistance. The screw termination ensures secure wire connections, while the threaded fastening type provides vibration resistance. The connector is free hanging (in-line) mounted and has a keyed orientation to prevent misalignment.
The shell is made of passivated stainless steel, offering durability and corrosion resistance. The cable opening accommodates 0.200" to 0.450" (5.08mm to 11.43mm) diameter cables. It is rated for 8A and 13A current at 600VAC/DC, making it suitable for moderate power applications. The IP67 rating ensures it is dust-tight and waterproof, ideal for outdoor or industrial use. The operating temperature range is -20°C to 80°C.
An integrated backshell provides strain relief and cable protection. The connector is unshielded and comes in black and silver color. It is suitable for automation, sensor, and machinery cabling where robust connectivity is required.
4 positions.
8A and 13A.
600VAC/DC.
Free hanging (in-line).
IP67 - dust tight and waterproof.
Screw termination.
-20°C to 80°C.
