| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
77 pcs
|
77 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| 1st Connector Gender | |
| 1st Connector Mounting Type | |
| 1st Connector Number of Positions | |
| 1st Connector Number of Positions Loaded | |
| 1st Connector Orientation | |
| 1st Connector Type | |
| 2nd Connector Type | |
| Assembly Configuration | |
| CSA | |
| Cable Material | |
| Cable Type | |
| Color | |
| Conductor | |
| Connector Gender | |
| Connector Type | |
| Current Rating | |
| Industrial Grade | |
| Ingress Protection | |
| Insert Material | |
| Length | |
| Loaded Positions | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Shell Material | |
| Shielding | |
| Termination Style | |
| UL | |
| Usage | |
| Voltage Rating |

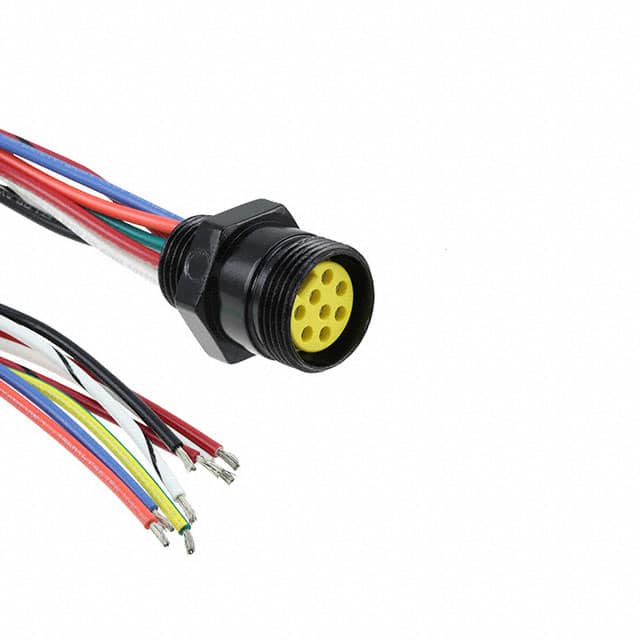

The Molex 1300140061 is a Mini-Change circular cable assembly featuring an 8-position female receptacle (female sockets) with a panel mount design and keyed orientation. The assembly terminates to individual #16 AWG (26x30 copper stranding) PVC wire leads, 1 ft (304.80 mm) in length. It is rated for 600V AC/DC and 7A (for the 8-pin configuration).
The shell is constructed of zinc diecast with a black epoxy coat, and the insert is PVC rated UL94 V0. This unshielded assembly is designed for industrial environments and offers IP68 (dust tight, waterproof) and NEMA 6P ingress protection. Operating temperature range is -20°C to 105°C.
The receptacle uses a 1/2"-14 NPT mounting thread and is epoxy potted. It is UL Recognized (File No. E46237) and CSA Certified (File No. LR6837).
600V AC/DC.
7A for the 8-pin configuration.
-20°C to 105°C.
IP68 (dust tight, waterproof) and NEMA 6P.
RoHS3 Compliant (unverified).
304.80 mm (1.00 ft).
8-position female receptacle (female sockets).
