| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
824 pcs
|
824 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Stud | |
| Stud Size | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Thickness | |
| Width | |
| Wire Gauge |

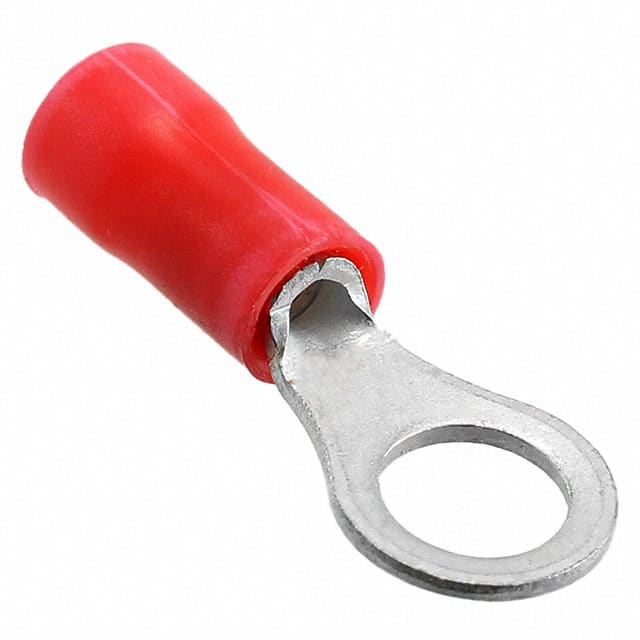

The TE Connectivity 130014 is an insulated ring terminal designed for 16-22 AWG wire. It features a circular terminal type with an M5 stud size, making it suitable for power and signal connections requiring a secure ring lug attachment. The contact is made of copper with a tin plating, ensuring good electrical conductivity and corrosion resistance. The terminal is terminated via crimp, providing a reliable mechanical and electrical connection. It is a free hanging (in-line) mount style and includes a serrated termination for improved grip. The insulation is red in color, typical for 16-22 AWG insulated terminals. Physical dimensions include a length of 21.79 mm, width of 8.00 mm, and a contact thickness of 0.81 mm.
16-22 AWG
M5 (5 mm) stud
Yes, it is insulated and red in color.
Crimp
