| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| 1st Connector Gender | |
| 1st Connector Mounting Type | |
| 1st Connector Number of Positions | |
| 1st Connector Number of Positions Loaded | |
| 1st Connector Orientation | |
| 1st Connector Shell Size | |
| 1st Connector Type | |
| 2nd Connector Type | |
| Assembly Configuration | |
| Cable Material | |
| Cable Type | |
| Color | |
| Conductor Size | |
| Current Rating | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Mounting Type | |
| NEMA Rating | |
| Operating Temperature | |
| Shielding | |
| Termination Style | |
| Usage | |
| Voltage Rating |

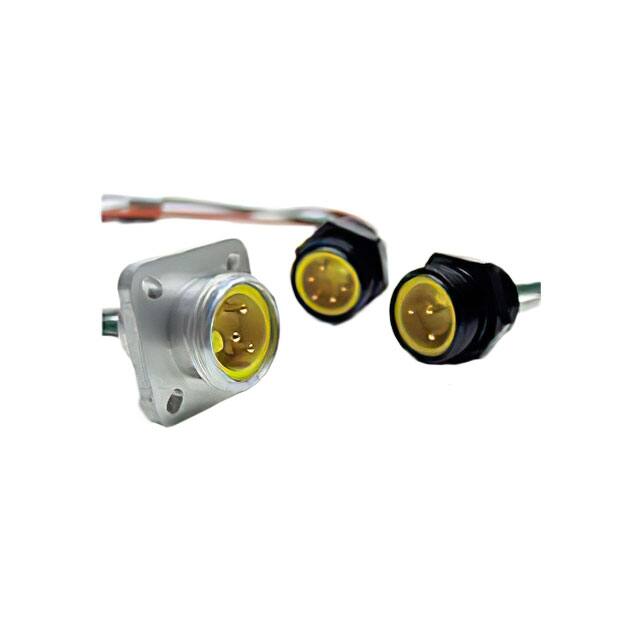

The Molex 1300130386 is a circular cable assembly designed for industrial environments requiring reliable, waterproof connectivity. It consists of a 4-position male receptacle with a right angle orientation and panel mount configuration, terminated to individual #16 AWG PVC wire leads. The cable length is 1.00 ft (304.8 mm), with multiple color-coded conductors for easy identification.
Electrical ratings include 10A current capacity and 600V AC/DC voltage rating. The assembly is unshielded and features a 1/2" shell size. Environmental protection is provided by an IP68 rating (dust tight and waterproof) and NEMA 6P rating, making it suitable for harsh conditions such as outdoor, marine, or factory floor applications. The operating temperature range is -20°C to 105°C.
The right angle receptacle allows for space-saving installations where straight connectors would be impractical. The panel mount feature secures the receptacle to an enclosure or panel. The wire leads are prepared for direct connection to terminal blocks or other wiring. This assembly is part of the Mini-Change series from Molex, known for rugged industrial connectivity.
The voltage rating is 600 V AC/DC.
The receptacle is panel mount with a right angle orientation, and the termination is wire leads.
The operating temperature range is -20°C to 105°C.
The part is listed as RoHS3 compliant, but this has not been verified and should be confirmed with official documentation.
The current rating is 10 A.
The IP rating is IP68, meaning dust tight and waterproof.
The cable length is 1.00 ft (304.8 mm).
