| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| 1st Connector Gender | |
| 1st Connector Mounting Type | |
| 1st Connector Number of Positions | |
| 1st Connector Number of Positions Loaded | |
| 1st Connector Orientation | |
| 1st Connector Shell Size | |
| 1st Connector Type | |
| 2nd Connector Type | |
| Assembly Configuration | |
| Cable Material | |
| Cable Specification | |
| Cable Type | |
| Certifications | |
| Color | |
| Conductor Size | |
| Connector Body Material | |
| Contact Plating | |
| Coupling Nut Material | |
| Current Rating | |
| Ingress Protection | |
| Length | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Outside Diameter | |
| Positions Loaded | |
| Shell Size | |
| Shielding | |
| Usage | |
| Voltage Rating |

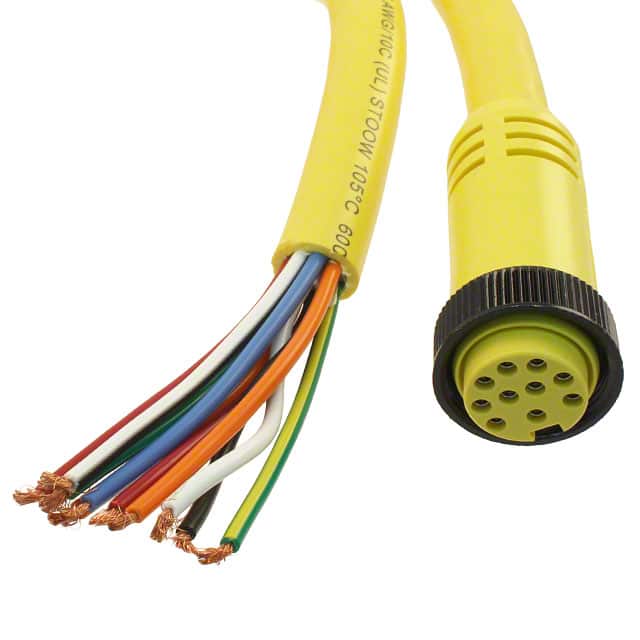

The Molex 1300080028 is a single-ended cordset from the Mini-Change series, designed for reliable power and signal connections in industrial environments. This 10-position female plug to wire leads assembly features a 12 ft (3.66m) round yellow PVC cable with 16 AWG conductors. The unshielded cable is rated for 600V AC/DC and 7A current, with an operating temperature range of -20°C to 105°C.
The connector features a keyed orientation and a 1 1/8" shell size, with a free-hanging (in-line) mounting style. The female plug body is molded from PVC (UL 94 V-0), and the coupling nut is zinc diecast with a black epoxy coating. The contacts are gold/palladium nickel plated for low resistance and corrosion resistance.
This assembly is designed for harsh industrial environments, with an IP68 protection rating (NEMA 6P) when mated. The cable is STOOW oil-resistant PVC jacket, making it suitable for use in wet or oily conditions. The assembly is UL Recognized and CSA Certified.
Typical applications include industrial automation, control systems, sensors, actuators, and other equipment requiring a robust, weatherproof connection.
600V AC/DC.
-20°C to 105°C (-4°F to 221°F).
RoHS3 compliant (unverified).
10 positions, all loaded.
12.00 feet (3.66 meters).
IP68 and NEMA 6P (datasheet specifies IP68; existing database specifies IP67, verify with manufacturer).
Round, yellow PVC, 16 AWG, STOOW oil-resistant.
