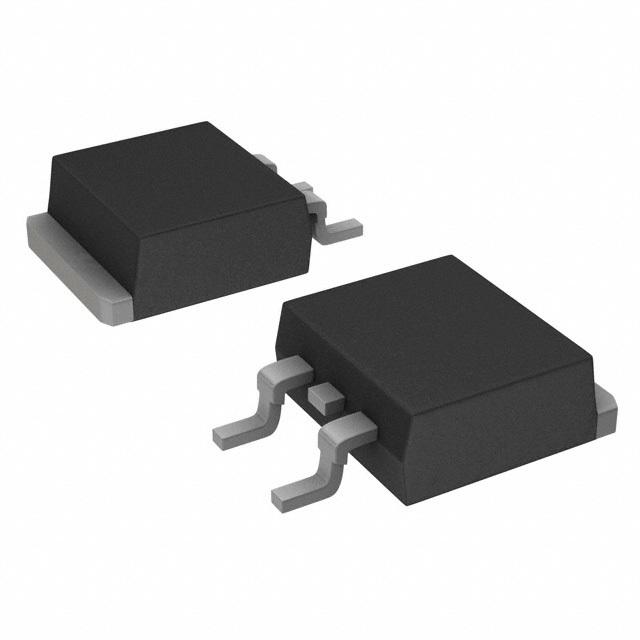

12CWQ03FNTRPBF The Vishay Dale 12CWQ03FNTRPBF is a Schottky diode array with a 30V reverse voltage rating and 6A average rectified current. It is supplied in a surface-mount DPAK package.
Mfr Part #:

12CWQ03FNTRPBF

Available from 2 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale 12CWQ03FNTRPBF is a Schottky diode array with a 30V reverse voltage rating and 6A average rectified current. It is supplied in a surface-mount DPAK package.
✓ Total Stock: 226,338 pcs
$ Price Range: $0.99

12CWQ03FNTRPBF Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
226,000 pcs
On Request
226000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
338 pcs
On Request
338 pcs On Request 1 On Request On Request 1152+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

12CWQ03FNTRPBF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Style
Mounting Type
Supplier Device Package
Tape & Reel
View Similar Products (0)

12CWQ03FNTRPBF Description

Short technical summary and product information.

This Vishay Dale 12CWQ03FNTRPBF is a Schottky diode array designed for rectification applications. It features a maximum DC reverse voltage of 30V and an average rectified current of 6A per diode. The forward voltage drop is a maximum of 470mV at 6A, with a reverse leakage current of 3mA at 30V.



The diode array is configured as a single pair of common cathode diodes. It is housed in a D-PAK (TO-252AA) surface-mount package, specifically the TO-252-3, DPak (2 Leads + Tab), SC-63 variant. The operating junction temperature range is from -55°C to 150°C.



This component is suitable for various power supply and signal processing applications where efficient rectification and low forward voltage are required. Its surface-mount design facilitates automated assembly processes.

12CWQ03FNTRPBF Quick Information

Product Type: Diode Array Schottky
Canonical Name: Vishay Dale 12CWQ03FNTRPBF Diode Array Schottky 30V 6A DPAK
Subcategory: Schottky Rectifier

12CWQ03FNTRPBF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

12CWQ03FNTRPBF Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

12CWQ03FNTRPBF Features

  • Schottky diode array for rectification.
  • 30V maximum reverse voltage.
  • 6A average rectified current.
  • Low forward voltage drop.
  • Surface mount DPAK package.

12CWQ03FNTRPBF Applications

  • Power supply rectification circuits.
  • Signal demodulation applications.
  • Reverse polarity protection.
  • Switching power supplies.

12CWQ03FNTRPBF FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage for the 12CWQ03FNTRPBF?

The maximum DC reverse voltage for the 12CWQ03FNTRPBF is 30V.

What is the average rectified current rating per diode?

The average rectified current per diode for the 12CWQ03FNTRPBF is 6A.

What is the forward voltage drop at 6A?

The maximum forward voltage drop at 6A is 470mV.

What is the operating temperature range?

The operating junction temperature range is -55°C to 150°C.

What type of package is the 12CWQ03FNTRPBF in?

The 12CWQ03FNTRPBF is supplied in a surface mount D-PAK (TO-252AA) package.

Is the 12CWQ03FNTRPBF RoHS compliant?

Yes, the 12CWQ03FNTRPBF is lead free and RoHS compliant.
