| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
42 pcs
|
42 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination |

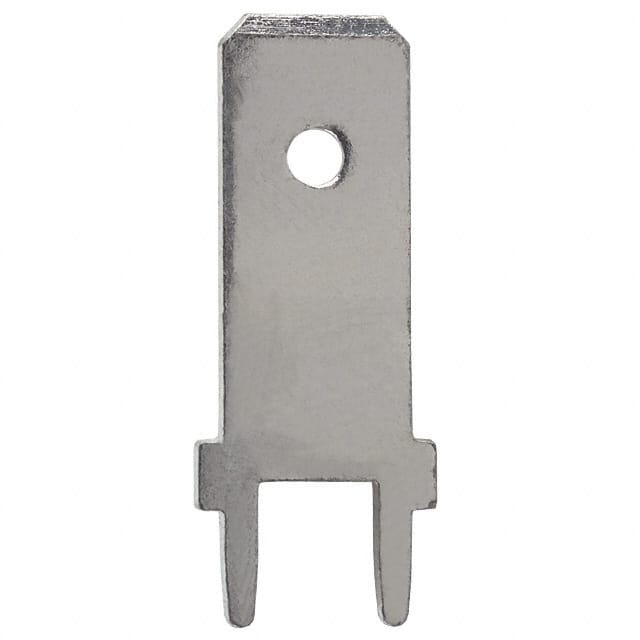

The Keystone Electronics 1289 is a standard male quick connect tab terminal designed for reliable solder connections in a variety of electronic assemblies. It features a 0.250" (6.35mm) tab width and 0.032" (0.81mm) thickness, making it compatible with common 0.250" female quick disconnect receptacles. The tab length is 0.540" (13.72mm), and the overall length of the terminal is 0.781" (19.84mm).
Constructed from brass with a tin-plated finish, the 1289 offers good conductivity and corrosion resistance. It is a non-insulated terminal, intended for applications where insulation is not required or where additional insulation can be applied separately. The through hole mounting style with solder termination provides a secure mechanical and electrical connection to the PCB.
This terminal is suitable for power distribution, PCB interconnect, and general wiring applications where a quick disconnect interface is needed. The tin finish ensures compatibility with lead-free soldering processes.
The tab width is 0.250" (6.35mm).
The tab thickness is 0.032" (0.81mm).
Through hole solder mounting.
Brass with a tin finish.
No, it is non-insulated.
