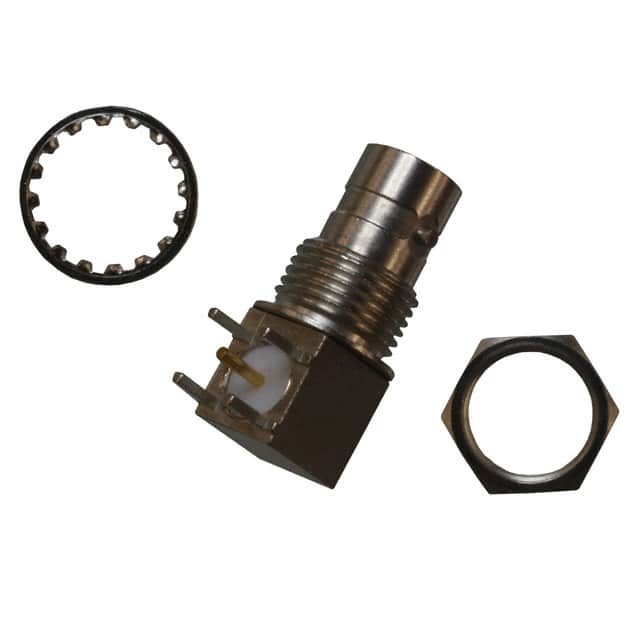

1274584-1 TE Connectivity 1274584-1 is a Mini BNC jack connector with female socket, right angle orientation, 75 Ohm impedance, and panel mount design for RF assemblies.
Mfr Part #:

1274584-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1274584-1 is a Mini BNC jack connector with female socket, right angle orientation, 75 Ohm impedance, and panel mount design for RF assemblies.
✓ Total Stock: 200 pcs

1274584-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1274584-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Frequency
Housing Color
Impedance
Mating Cycles
Mounting Feature
Mounting Type
Number of Ports
Operating Temperature Range
Shield Termination
Termination Style
View Similar Products (0)

1274584-1 Description

Short technical summary and product information.

The TE Connectivity 1274584-1 is a Mini BNC coaxial connector designed for PCB mounting. It features a female socket with a right angle orientation, and a panel mount bulkhead configuration secured by a front side nut. The connector has a 75 Ohm impedance and supports frequencies up to 2 GHz, making it suitable for RF signal transmission.



Electrical specifications include a voltage rating of 335 V RMS peak at sea level, minimum insulation resistance of 5000 MOhm, and contact resistance of 3.0 mOhm maximum for the center contact and 2.0 mOhm maximum for the outer contact. The connector withstands a dielectric voltage of 500 V RMS. Mechanically, it offers a bayonet lock fastening, solder termination for both contact and shield, and a phosphor bronze center contact material. The housing is silver-colored.



The connector is rated for 500 mating cycles with a maximum engage force of 7 lbf and disengage force of 1 lbf. It operates over a temperature range of -55°C to +125°C. The package includes a separate nut and washer for bulkhead mounting.

1274584-1 Quick Information

Product Type: Coaxial Connector (RF)
Canonical Name: BNC Mini Jack, Female Socket, Right Angle, 75 Ohm, Panel Mount
Subcategory: BNC Mini Connector

1274584-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Non-Compliant

1274584-1 Features

  • Mini BNC jack with right angle orientation.
  • 75 Ohm impedance for RF signal integrity.
  • Panel mount through hole solder termination.
  • Bayonet lock provides secure fastening.
  • Rated for 500 mating cycles durability.

1274584-1 Applications

  • Used in RF communication and test equipment.
  • Suitable for video signal distribution networks.
  • Ideal for PCB mounting in coaxial assemblies.
  • Applied in broadcast and surveillance systems.

1274584-1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of this connector?

335 V RMS peak at sea level.

What mounting type does this connector support?

Panel mount, through hole, right angle with bulkhead front side nut.

What is the impedance rating?

75 Ohm.

What is the maximum frequency?

2 GHz.

What is the operating temperature range?

-55°C to +125°C.

How many mating cycles is this connector rated for?

500 cycles.

What are the contact resistance values?

Center contact 3.0 mOhm max, outer contact 2.0 mOhm max.
