| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Style | |
| Cable Diameter Range | |
| Connector Type | |
| Contact Insert Type | |
| Contact Material | |
| Contact Type | |
| Coupling Ring Diameter | |
| Current Rating | |
| Flammability Rating | |
| Ingress Protection | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Type | |
| Number of Contacts | |
| Number of Positions | |
| Orientation | |
| Shielding | |
| Termination Style | |
| Type | |
| Voltage Rating |

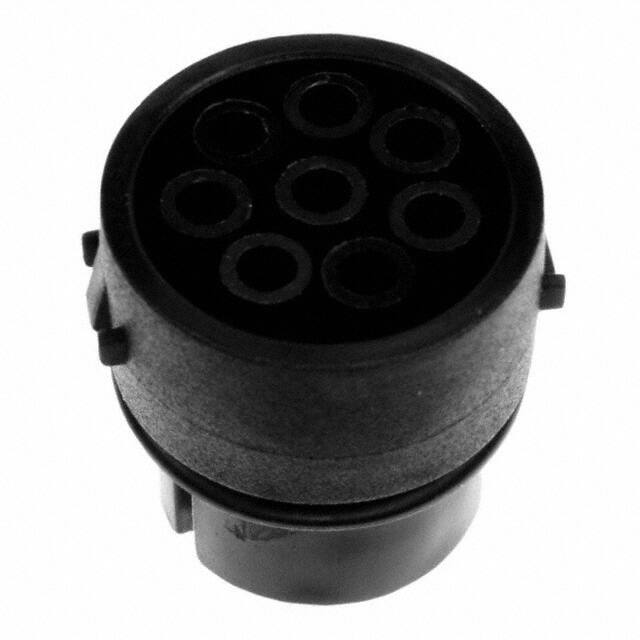

The Bulgin Components 12735/1 is a female socket insert designed for the Mini Buccaneer series of circular power connectors. It features 8 positions (7 power plus protective earth) with nickel-plated solder cup contacts. The insert is keyed for proper orientation and is unshielded. It is rated for 5A at 380V AC and accepts cables from 3.5mm to 9mm diameter. The coupling ring diameter is 26mm. The housing material has a UL94 V-0 flammability rating. When mated, the connector achieves IP68 dust-tight and waterproof protection, tested at 1.054 kg/sq cm (15 lb/sq in) and 10m depth for 2 weeks. This insert is suitable for free hanging (in-line) mounting and is compatible with all Mini Buccaneer body styles including flex cable, inline, and panel mount versions.
5A
380V AC
8 positions (7 power + PE)
IP68 - dust tight and waterproof
Solder cup
UL94 V-0
3.5mm to 9mm
