| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Contact Finish | |
| Contact Material | |
| Current Rating | |
| Gender | |
| Insulation | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature Range | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Voltage Rating |

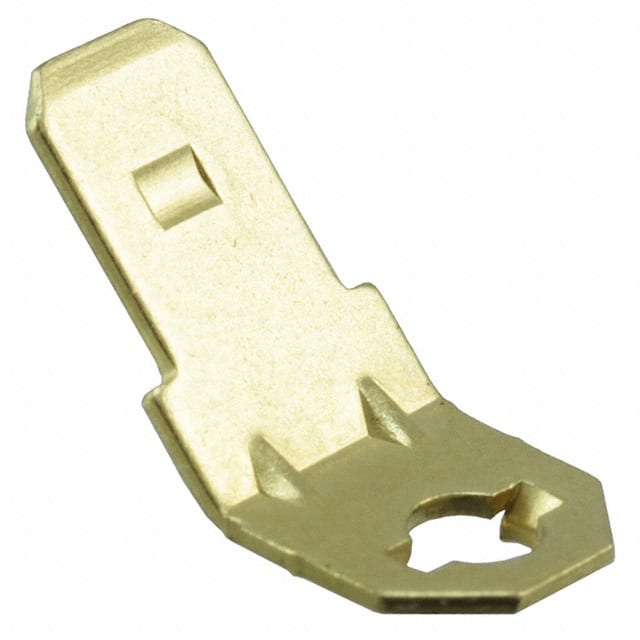

The Keystone Electronics 1271 is a male quick connect tab terminal designed for solderless connections in a variety of electrical and electronic assemblies. It features a tab width of 0.187" (4.75mm) and a tab thickness of 0.020" (0.51mm), making it suitable for standard 0.187" quick disconnect receptacles. The terminal is constructed from brass with a tin-plated finish, providing good conductivity and corrosion resistance.
The terminal uses an angled 45° design and supports mounting directly to a board or chassis via screw, rivet, or stud termination. It is non-insulated, making it ideal for applications where insulation is not required or where the terminal is used in a controlled environment. The part is rated for 15 Amps at 500V AC and can operate over a temperature range of -50°C to +145°C, suitable for many industrial and commercial uses.
15 Amps at 500V AC.
-50°C to +145°C.
Board or chassis mounting using screw, rivet, or stud termination.
No, it is a non-insulated terminal.
Brass with a tin plating finish.
0.020" (0.51mm).
