| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Material Thickness | |
| Mounting Hole Diameter | |
| Mounting Type | |
| Overall Length | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination |

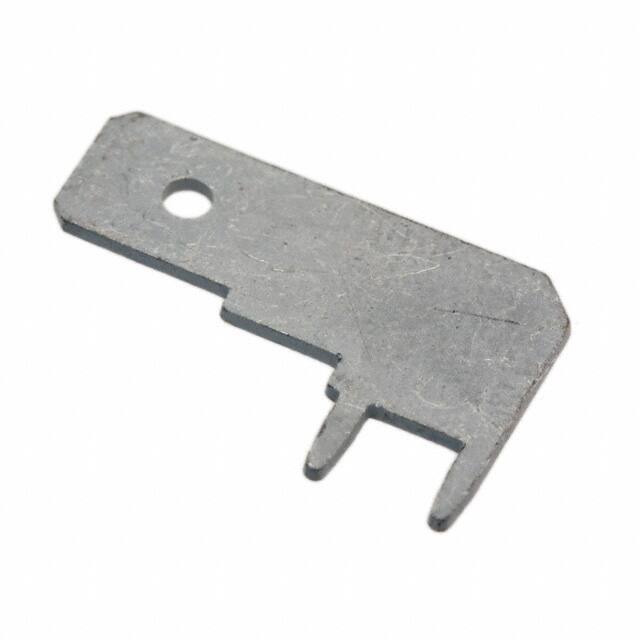

The Keystone Electronics 1266 is a non-insulated quick connect male tab designed for reliable solder termination in through hole right angle applications. The tab features a width of 0.250" (6.35mm) and a thickness of 0.032" (0.81mm), with a tab length of 0.312" (7.92mm) and an overall length of 0.790" (20.06mm).
Constructed from brass with a matte tin plate finish, the 1266 offers good conductivity and corrosion resistance. The mounting hole diameter is 0.052" (1.32mm), and the material thickness is 0.032" (0.80mm). This component is RoHS compliant.
Typical applications include power supply connections, automotive wiring, and industrial control panels where a secure, solderable quick connect interface is required. The right angle orientation facilitates compact PCB layouts.
The tab width is 0.250" (6.35mm).
The contact is brass with a tin plate finish.
Through hole, right angle with solder termination.
Yes, it is RoHS3 compliant as verified in the datasheet.
The overall length is 0.790" (20.06mm).
