| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | 1970-01-01 00:30:13 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Approval Agency | |
| Automotive Grade | |
| Connection Type | |
| Current | |
| Dimensions | |
| Enclosure Material | |
| Features | |
| Form | |
| IP Rating | |
| Industrial Grade | |
| Leakage Current | |
| Max Continuous Operating Voltage (MCOV) | |
| Maximum Discharge Current (Imax) | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Nominal Discharge Current (In) | |
| Number of Poles | |
| Operating Altitude | |
| Operating Temperature | |
| Overcurrent Protection Rating | |
| Relative Humidity | |
| Remote Signaling | |
| Short-Circuit Current Rating (SCCR) | |
| TOV Withstand | |
| Tape & Reel | |
| Termination Style | |
| Thermal Protection | |
| Type | |
| Voltage | |
| Voltage Protection Rating (VPR) |

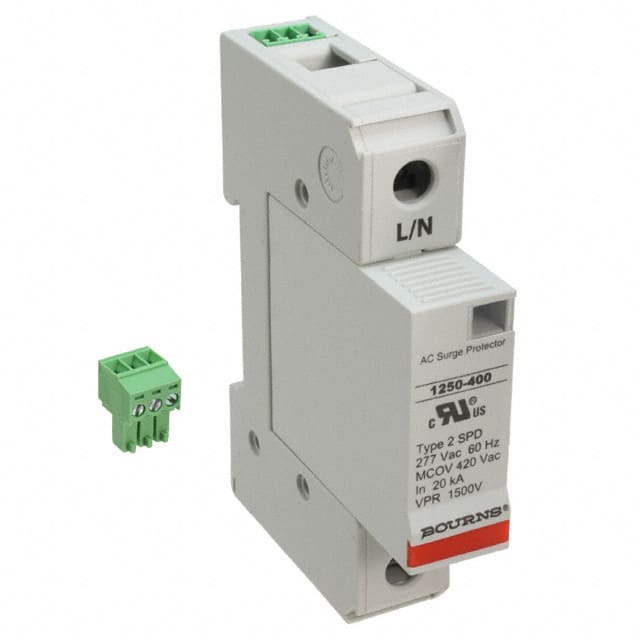

The Bourns 1250-1S-400 is a 1-pole general duty AC Surge Protective Device (SPD) from the 1250 Series. It features a Max Continuous Operating Voltage (MCOV) of 420V and a TOV withstand of 440V. The device is rated for a nominal discharge current (In) of 20kA and a maximum discharge current (Imax) of 50kA per 8/20µs impulse. It achieves a Voltage Protection Rating (VPR) of 1200V and a Short-Circuit Current Rating (SCCR) of 100kA.
The SPD is designed for DIN Rail mounting and uses a base + module form factor. It offers screw terminal connections accepting up to #6 AWG wire. The enclosure is made of thermoplastic rated UL 94V0, and the device is IP20 rated. It includes remote signaling contacts and integrated thermal protection, along with a visual fault indicator. Operating temperature range is -50°C to 85°C, and it is suitable for altitudes up to 4000m. The 1250-1S-400 is RoHS compliant and carries CE, CSA, and UR approvals. It is intended for installation at service entrance and branch panels to protect against transient overvoltages.
The MCOV is 420V.
Nominal discharge current (In) is 20kA, and maximum discharge current (Imax) is 50kA.
The VPR is 1200V.
The SCCR is 100kA.
It is DIN Rail mountable.
Yes, it includes remote signaling contacts.
The operating temperature range is -50°C to 85°C.
