| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,293 pcs
|
3293 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pin Diameter | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Weight |

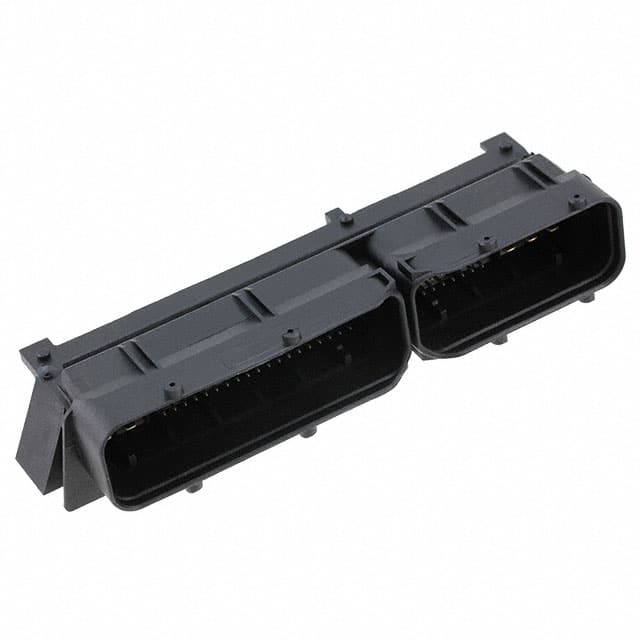

This TE Connectivity 1241434-1 is a rugged shrouded header designed for demanding board-to-cable/wire interconnections. It features 121 positions arranged in 4 rows, comprising 108 signal contacts and 13 power contacts with tab size 2.8 x 0.8 mm. All positions are loaded with square male pins made of copper alloy with a tin plating finish.
The connector uses a through-hole, right-angle mounting style with solder termination and includes a board lock feature for secure attachment during assembly. The housing is made of glass-filled polyamide (PA66/Nylon 6/6) in black color. A latch holder fastening type ensures reliable mating retention.
With an operating temperature range of -40°C to 120°C and a 4-wall shrouded design, this header is suitable for harsh environments. The insulation height is 31.10 mm. Contact axial resistance force is a minimum of 40 N for pins and 80 N for tabs, ensuring robust terminal retention. The product weighs 73 g.
It is a shrouded header with male pins.
It has a total of 121 positions, with 108 signal and 13 power contacts.
It is a through-hole, right-angle mount connector with solder termination.
It operates from -40°C to 120°C.
Yes, it includes a board lock for secure PCB attachment.
