| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Style | |
| Termination | |
| Termination Style |

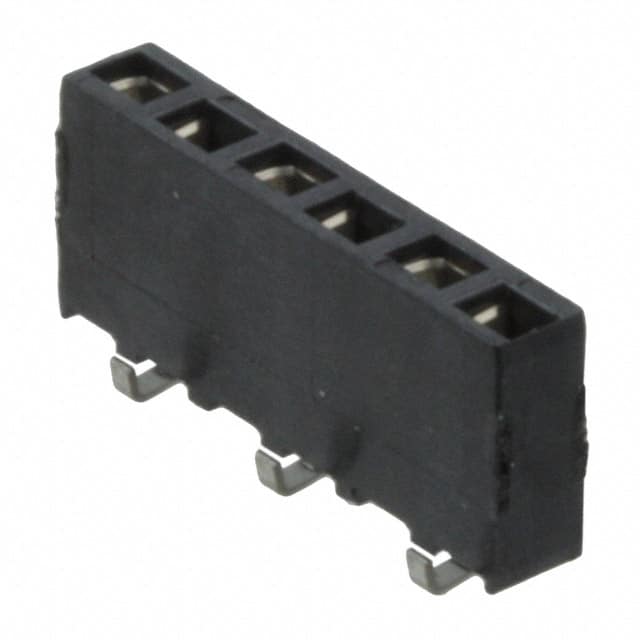

This TE Connectivity 1241152-6 is a female socket receptacle designed for board-to-board connections. It offers 6 positions with a pitch of 2.54mm, suitable for precise component placement.
The receptacle features a surface mount type and a push-pull fastening mechanism for secure engagement. The termination is solder, and the contact finish is tin with a thickness of 31.5µin (0.80µm). The insulation color is black, and the insulation height is 6.2mm.
This component is designed for pick and place assembly, facilitating automated manufacturing processes. It is suitable for applications requiring reliable interconnects between printed circuit boards.
The TE Connectivity 1241152-6 is a female socket receptacle.
The connector has 6 positions.
The pitch is 2.54mm (0.100").
The mounting type is Surface Mount.
It features a Push-Pull fastening type.
The contact finish is Tin with a thickness of 31.5µin (0.80µm).
The insulation height is 6.2mm (0.244").
