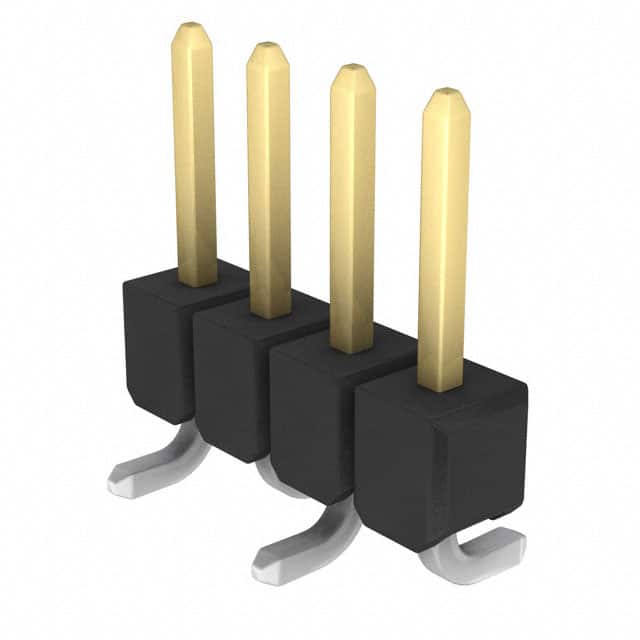

1241150-4 TE Connectivity 1241150-4 is a 4-position, 2.54mm pitch, surface-mount unshrouded header with square tin male pins and a black PCT insulator.
Mfr Part #:

1241150-4

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1241150-4 is a 4-position, 2.54mm pitch, surface-mount unshrouded header with square tin male pins and a black PCT insulator.
✓ Total Stock: 12,000 pcs

1241150-4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
12,000 pcs
On Request
12000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1241150-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Length
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Shrouding
Style
Tape & Reel
Termination
View Similar Products (0)

1241150-4 Description

Short technical summary and product information.

The TE Connectivity 1241150-4 is a 4-position unshrouded header designed for board-to-board or cable connections. It features a single row of square male pins with a 2.54mm (0.100") pitch, making it suitable for standard spacing requirements. The contacts are made of brass with a tin flash finish, and the insulator is black Polycyclohexylenedimethylene Terephthalate (PCT).



This component is designed for surface mount termination and includes a pick-and-place feature for automated assembly. The push-pull fastening type and unshrouded design provide straightforward mating and disconnection. The contact length is 5.80mm, and the insulation height is 2.79mm. The header supports board-to-board or cable styles for flexible connectivity solutions.

1241150-4 Quick Information

Product Type: Header, Male Pins
Canonical Name: 1241150-4 - TE Connectivity - Header, Male Pins, Surface Mount, 4 Positions, 2.54mm Pitch
Subcategory: Unshrouded Header

1241150-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

1241150-4 Features

  • 4 positions in a single row.
  • 2.54mm pitch for standard spacing.
  • Surface mount solder termination.
  • Unshrouded design for easy mating.
  • Pick-and-place compatible for automated assembly.

1241150-4 Applications

  • Board-to-board connections in electronic assemblies.
  • Cable-to-board interfaces requiring unshrouded headers.
  • Prototyping and general-purpose interconnect applications.
  • Applications needing automated SMT assembly.

1241150-4 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the connector type of TE Connectivity 1241150-4?

Header, Breakaway (Unshrouded).

How many positions does this header have?

4 positions, all loaded, in a single row.

What is the pitch of the 1241150-4?

2.54mm (0.100 inch).

What is the mounting type for this part?

Surface mount (SMT) with solder termination.

What material are the contacts and insulator made of?

Contacts are brass with tin finish; insulator is black PCT.
