| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,050 pcs
|
15050 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,109 pcs
|
1109 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
299 pcs
|
299 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination |

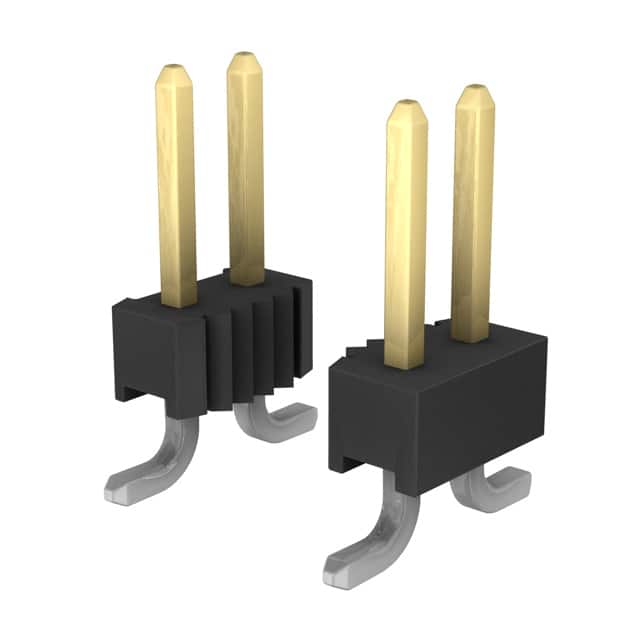

The TE Connectivity 1241050-5 is a 10-position, 2-row unshrouded male pin header designed for surface mount soldering. It features a 2.54mm (0.100") pitch and row spacing, making it compatible with standard 0.100" grid prototyping and production boards. The connector uses square tin-plated brass contacts with a flash thickness finish, providing reliable electrical connections for board-to-board or cable applications.
The insulator is molded from black Polycyclohexylenedimethylene Terephthalate (PCT), a high-temperature thermoplastic suitable for reflow soldering processes. The header includes a pick-and-place feature for automated assembly. With a push-pull fastening type and an insulation height of 2.79mm, this connector is suited for compact designs where low profile and ease of mating are required.
This part is available in tape and reel or cut tape packaging for surface mount assembly. It is RoHS3 compliant and has an MSL rating of 1 (unlimited floor life). The 1241050-5 is a breakaway style header, allowing the user to customize the number of positions if needed, though all 10 positions are loaded from the factory.
The 1241050-5 has 10 positions, all loaded, arranged in 2 rows.
The pitch is 2.54mm (0.100") with the same row spacing.
This header is surface mount with solder termination.
The contacts are made of brass with a tin flash finish.
No, it is an unshrouded header.
