| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
46 pcs
|
46 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Conductor Material | |
| DC Resistance |

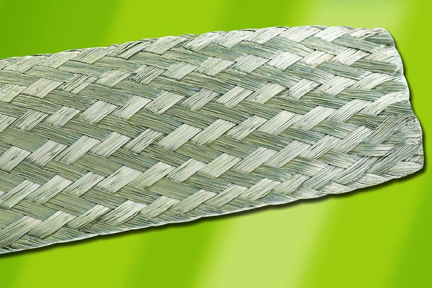

The Alpha Wire 1231 is a grounding braid designed for effective point-to-point grounding and additional cable shielding in retrofit applications. Constructed from tinned copper per ASTM B-33 and CID-A-A-59551, this braid offers robust performance.
Key specifications include an approximate equivalent AWG of 14 and an approximate ampacity of 32 Amps. The nominal DC resistance is 3.49 Ohms per 1000 feet. The braid data indicates nominal dimensions of 0.250 x 0.030 inches, with 168 total ends and 24 carriers, using AWG 36 ends.
This product complies with DSCC CID A-A-59569C. It is available in various packaging options, including 100 ft., 500 ft., and 1000 ft. lengths, with spool sizes potentially varying slightly. The braid is suitable for applications requiring reliable grounding and electromagnetic interference (EMI) shielding.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The approximate ampacity is 32 Amps.
The approximate equivalent AWG is 14.
The conductor is made of tinned copper, per ASTM B-33.
The nominal DC resistance is 3.49 Ohms per 1000 feet.
It has 24 carriers of 36 AWG ends, totaling 168 ends, with nominal dimensions of 0.250 x 0.030 inches.
It complies with DSCC CID A-A-59569C.
It is available in 100 ft., 500 ft., and 1000 ft. spools.
