| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
88 pcs
|
88 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Plating | |
| Current Rating | |
| Failure Rate | |
| Housing Material | |
| Level, Class | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

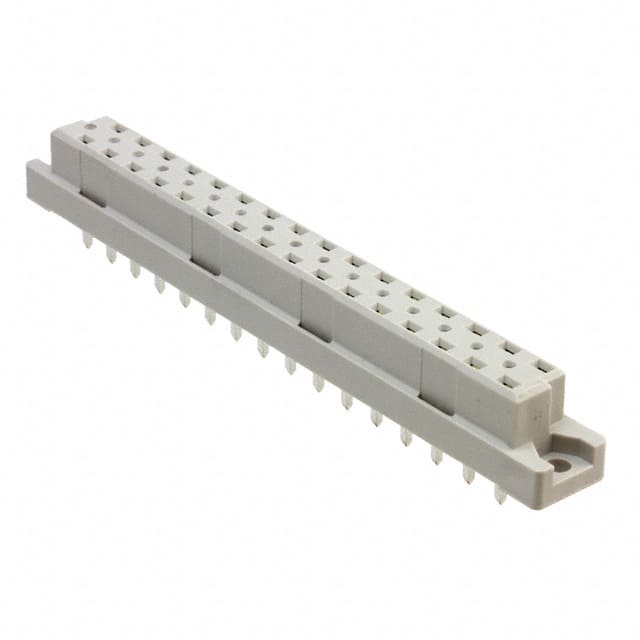

The CONEC 122A10949X is a DIN 41612 Type D female receptacle designed for backplane applications. It features 32 positions arranged in two rows (A+C) with a 5.08mm pitch. The termination style is a straight solder pin, and the housing is constructed from Polybutylene Terephthalate (Pbt) with Copper Alloy contacts plated in Gold.
This connector operates within a temperature range of -55 C to +125 C and has electrical ratings of 5.5A current and 125V voltage. The product type is classified as a receptacle, and it belongs to the 122A series within the broader DIN 41612 connector category.
Key mechanical and electrical specifications include a straight mounting angle and a female contact gender. The connector is supplied in a factory pack quantity of 25 units. Its HTS code is 8536694040 and CNHTS is 8538900000.
