| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

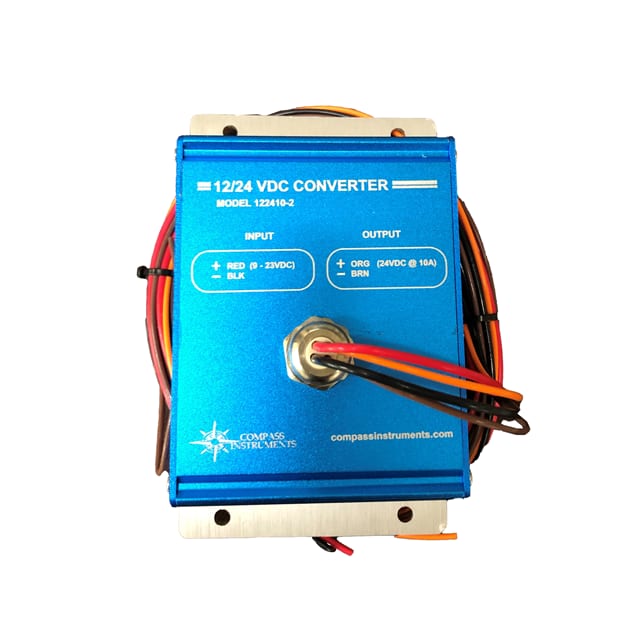

This Compass Instruments 122410-2 is a ruggedized and reliable enclosed DC to DC converter. It is designed to provide a +24VDC output at up to 10 amps, drawing power from a +9 to +23VDC source. The converter utilizes multiphase circuitry for enhanced stability and reliability.
Featuring a fully enclosed anodized aluminum housing, the unit is potted for ingress protection, eliminating the need for an additional enclosure. It includes input overvoltage protection and output current limiting circuitry for damage prevention. The converter is suitable for ITE (Commercial) applications and has a wide operating temperature range of -40°C to +65°C.
With dimensions of 6.50" L x 3.38" W x 2.30" H (165.1mm x 85.7mm x 58.4mm), it is designed for chassis mounting. The unit comes with two-meter long color-coded flying leads for easy integration into existing circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
+24 VDC
10 A
9-23 VDC
-40°C ~ 65°C
Chassis Mount
Enclosed
