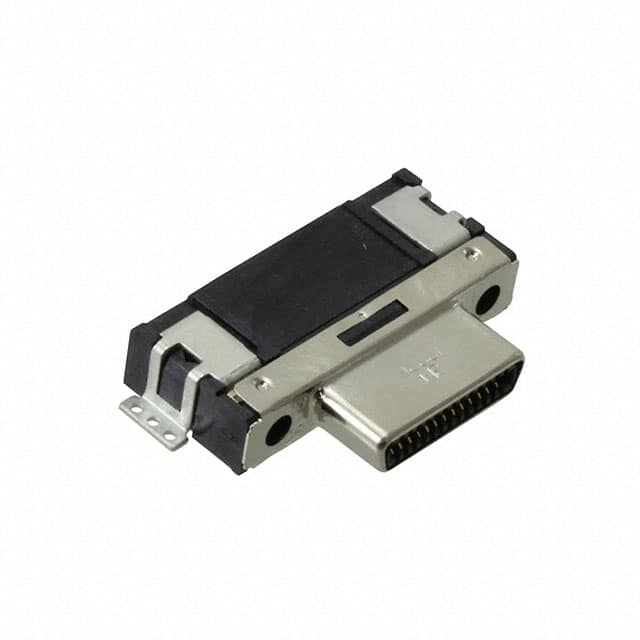

The 3M 12226-8200-00 FR is a 26-position SCSI receptacle connector designed for surface mount, right angle assembly. It features outer shroud contacts and a mating flange on the mating side (M2). The connector uses solder termination and has gold contact finish with 30.0µin thickness.
This connector is packaged in an SMD form factor and is suitable for hard disk drive interface applications such as SAS/SATA/M.2. It is classified under the Centronics Connectors category and is RoHS3 compliant with an MSL level of 1.
The 12226-8200-00 FR is manufactured by 3M and is available for PCB assembly. Its right angle orientation and surface mount design make it ideal for space-constrained layouts where a low-profile connection is required.
Receptacle with outer shroud contacts.
26 positions arranged in 2 rows.
Surface mount, right angle orientation.
Gold with 30.0µin (0.76µm) thickness.
Yes, a mating side flange (M2).
SCSI interface form.
MSL level 1.
