1217853-1

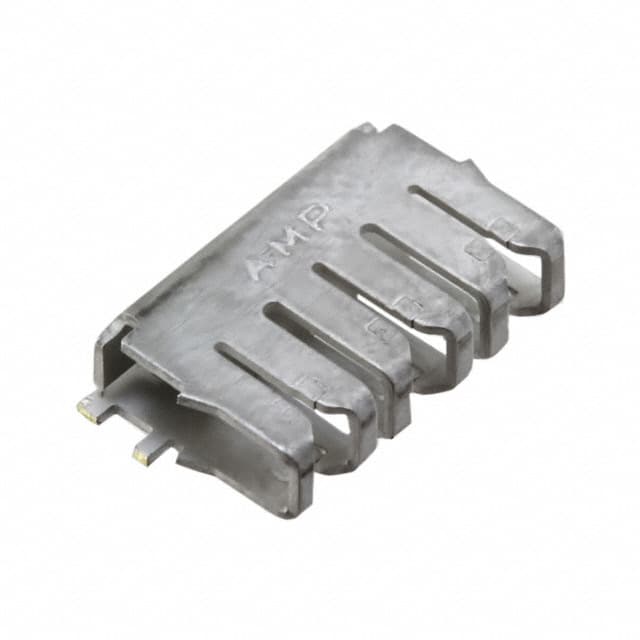

The TE Connectivity 1217853-1 is a magnetic wire connector designed for terminating magnet wires in the 20-23.5 AWG range. It features an IDC (Insulation Displacement Connection) termination style, which allows for quick and reliable connections without stripping the insulation. The terminal type is a tri-slot splice terminal, providing multiple contact points for secure electrical and mechanical connections.

This connector is part of the Magnetic Wire Connectors category, commonly used in applications such as motors, transformers, and solenoids where magnet wire connections are required. The IDC termination simplifies assembly and reduces labor costs compared to traditional soldering or crimping methods.

The connector is designed for wire gauges from 20 to 23.5 AWG, making it suitable for a range of magnet wire sizes. The tri-slot design ensures consistent contact pressure and reliable performance in demanding environments.

As a splice terminal, it is intended for inline splicing of magnet wires, providing a compact and durable connection solution. The connector is RoHS3 compliant, meeting current environmental standards for electronic components.
