| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,465 pcs
|
1465 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Overall Length | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination |

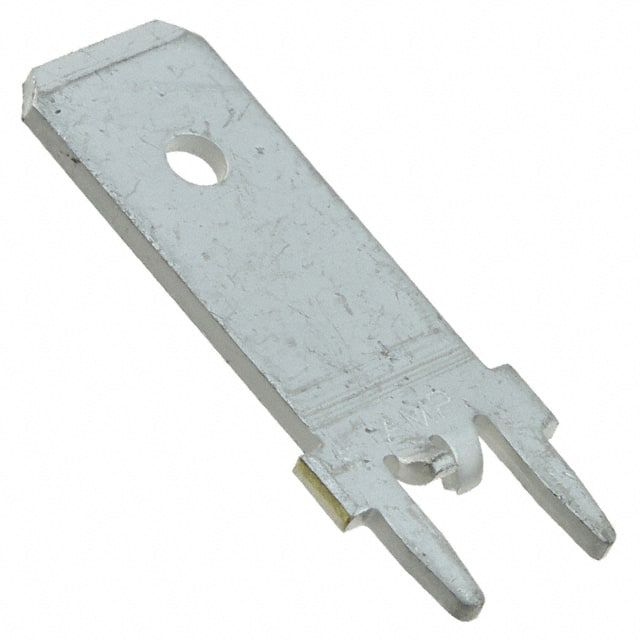

The TE Connectivity 1217167-1 is a standard male quick connect tab terminal designed for reliable quick disconnect applications. It features a tab width of 0.250" (6.35mm) and a tab thickness of 0.032" (0.81mm), with a tab length of 0.540" (13.72mm) and an overall length of 19.81mm. The terminal is non-insulated, allowing direct electrical contact.
The contact is made of brass with a tin finish, providing good conductivity and corrosion resistance. The mounting type is through hole with solder termination, ensuring a secure mechanical and electrical connection. This terminal is suitable for wire-to-board or wire-to-wire connections in various industries including automotive, appliance, and industrial control.
Through hole with solder termination.
0.250" (6.35mm).
No, it is non-insulated.
Brass with tin plating.
19.81mm (0.780").
