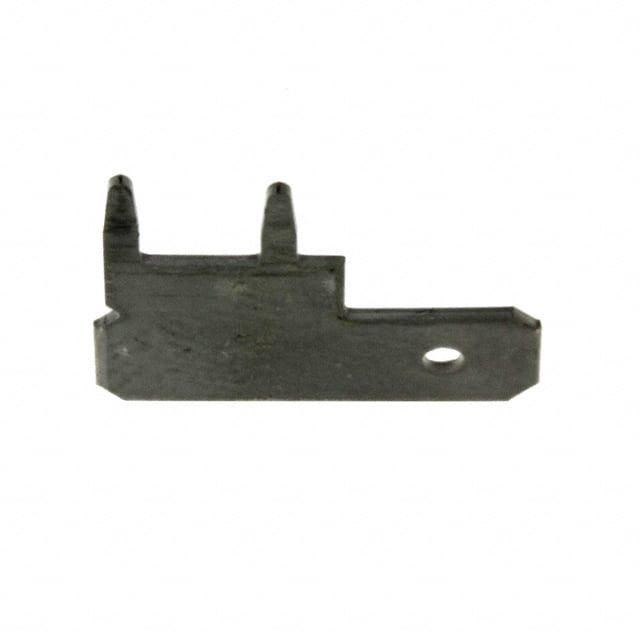

1217156-1 TE Connectivity 1217156-1 is a male quick disconnect tab terminal with a 0.187" (4.75mm) tab width. It features a through-hole, right-angle mounting style with solder termination.
Mfr Part #:

1217156-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 1217156-1 is a male quick disconnect tab terminal with a 0.187" (4.75mm) tab width. It features a through-hole, right-angle mounting style with solder termination.
✓ Total Stock: 2,000 pcs
$ Price Range: $0.14 - $0.19

1217156-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1217156-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Material
Gender
Insulation
Mounting Type
Tab Length
Tab Thickness
Tab Width
Tape & Reel
Terminal Type
Termination
Termination Style
View Similar Products (0)

1217156-1 Description

Short technical summary and product information.

The TE Connectivity 1217156-1 is a non-insulated male quick disconnect tab terminal designed for solder termination. It features a tab width of 0.187" (4.75mm), a tab length of 0.250" (6.35mm), and a tab thickness of 0.020" (0.51mm). The terminal is configured with a 90-degree angled tab for right-angle mounting.



Constructed with a brass contact base and a tin contact finish, this terminal is suitable for applications requiring reliable electrical connections. The through-hole mounting style allows for secure attachment to printed circuit boards or other substrates.



This component is part of TE Connectivity's range of quick disconnect terminals, commonly used in power distribution, automotive, and industrial control systems where a fast and reliable connection is needed.

1217156-1 Quick Information

Product Type: Quick Disconnect Tab Terminal
Series: FASTON
Canonical Name: TE Connectivity 1217156-1 Quick Disconnect Tab Terminal, Male, 0.187" (4.75mm) Tab Width, Solder Termination
Subcategory: Quick Connects, Quick Disconnect Connectors

1217156-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1217156-1 Estimated Pricing

Qty Low High
1+ $0.19 $0.19
10+ $0.18 $0.18
1,000+ $0.16 $0.16
3,000+ $0.16 $0.16
5,000+ $0.16 $0.16
10,000+ $0.14 $0.14

Estimated market price range - modelled values for guidance only, not live distributor offers.

1217156-1 Features

  • 0.187" (4.75mm) tab width for quick connections.
  • 0.020" (0.51mm) tab thickness for secure mating.
  • Through-hole right-angle mounting for PCB designs.
  • Tin-plated brass contact for reliable conductivity.
  • Non-insulated terminal for direct solder connections.

1217156-1 Applications

  • Ideal for power supply and distribution boards.
  • Used in automotive electrical system connections.
  • Suitable for industrial control panel wiring.
  • Common in appliance and white goods manufacturing.

1217156-1 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the tab width of the TE Connectivity 1217156-1?

The tab width is 0.187" (4.75mm).

What is the mounting style of this terminal?

It is a through-hole, right-angle mounting terminal.

What is the contact material and finish?

The contact material is brass with a tin finish.

Is this terminal insulated?

No, it is a non-insulated terminal.

What is the termination method?

The termination method is solder.
