| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

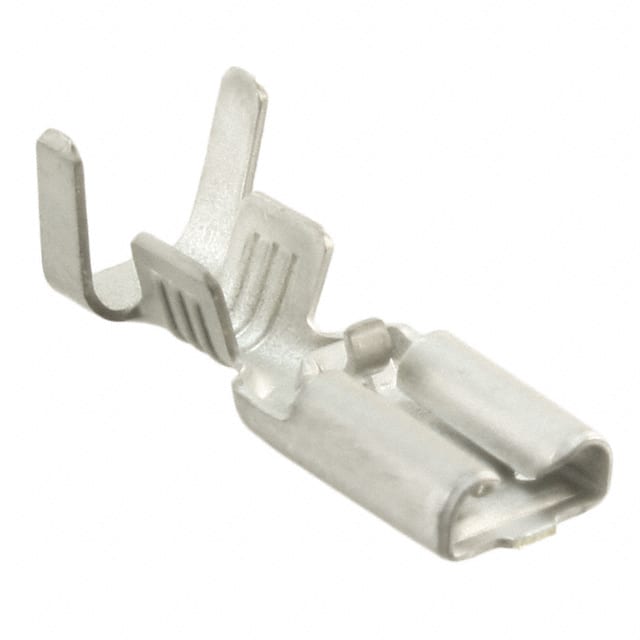

The TE Connectivity 1217096-2 is a non-insulated female quick disconnect terminal designed for reliable wire-to-tab connections. It accepts 14-18 AWG wire and mates with 0.187" (4.75mm) wide tabs, with a tab length of 6.48mm and tab thickness of 0.81mm.
The terminal uses a crimp termination style and is free hanging (in-line) mounted. The contact is made of brass with a tin finish, providing good conductivity and corrosion resistance. The overall length of the terminal is 17.02mm.
This standard female quick disconnect is suitable for a variety of power and signal interconnection applications where a reliable, separable connection is needed. The non-insulated design allows for use in applications where insulation is not required or where additional insulation is applied separately.
The terminal accepts 14-18 AWG wire.
The tab width is 0.187" (4.75mm).
No, it is non-insulated.
It uses a crimp termination.
The contact is made of brass with a tin finish.
