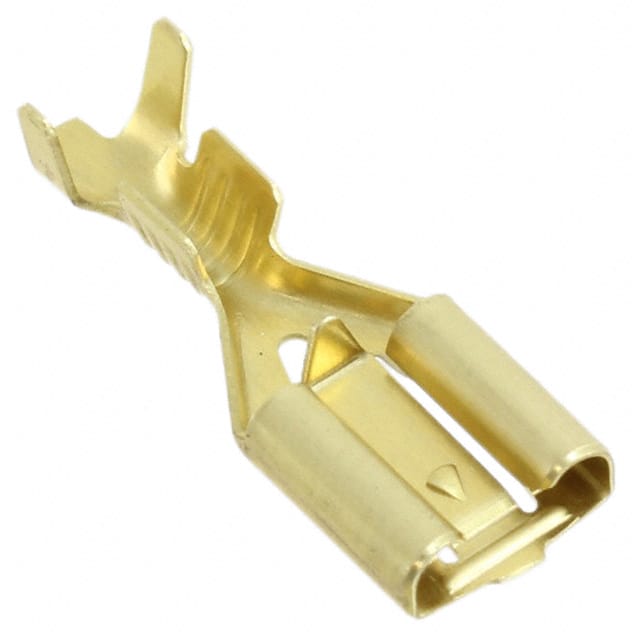

1217094-1 Female non-insulated quick disconnect terminal from TE Connectivity with 0.250" tab width, accepting 14-18 AWG wire via crimp termination.
Mfr Part #:

1217094-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
Female non-insulated quick disconnect terminal from TE Connectivity with 0.250" tab width, accepting 14-18 AWG wire via crimp termination.
✓ Total Stock: 3,439 pcs

1217094-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
3,439 pcs
On Request
3439 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1217094-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Material
Gender
Insulation
Lead Style
Length
Mounting Type
Tab Length
Tab Thickness
Tab Width
Terminal Type
Termination
Wire Gauge
View Similar Products (0)

1217094-1 Description

Short technical summary and product information.

The 1217094-1 is a quick disconnect terminal manufactured by TE Connectivity. It is a female, non-insulated terminal designed for 0.250" (6.35mm) tab width and accepts 14-18 AWG wire. The terminal is brass and uses a crimp termination method for secure wire attachment.



This terminal is intended for free hanging (in-line) mounting applications. Its tab thickness is 0.032" (0.81mm) and tab length is 0.293" (7.44mm), with an overall length of 19.58mm (0.771"). The non-insulated design is suitable for applications where insulation is not required or where a secondary insulation method is used.



Typical use cases include power distribution, control circuits, and general wiring applications where a reliable, quick-disconnect connection is needed.

1217094-1 Quick Information

Product Type: Quick Disconnect Terminal
Series: 1217094
Canonical Name: TE Connectivity 1217094-1 Quick Disconnect Terminal, Female, Non-Insulated, 0.250" Tab, 14-18 AWG
Subcategory: Female Non-Insulated Quick Connect

1217094-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1217094-1 Features

  • Female quick disconnect for 0.250" tab.
  • Accepts 14-18 AWG wire gauge.
  • Brass contact with crimp termination.
  • Non-insulated, free hanging in-line mounting.
  • Overall length of 19.58mm.

1217094-1 Applications

  • Power and control circuit connections.
  • General wiring in industrial equipment.
  • Automotive and appliance applications.
  • Quick-disconnect wiring harnesses.
  • In-line splice or tap connections.

1217094-1 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the wire gauge range for this terminal?

The terminal accepts 14-18 AWG wire.

What is the tab width of this terminal?

The tab width is 0.250" (6.35mm).

What mounting type does this terminal use?

This terminal uses free hanging (in-line) mounting.

Is this terminal insulated?

No, this is a non-insulated terminal.

What is the contact material?

The contact is made of brass.

What termination method does this terminal use?

The termination method is crimp.
