| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style |

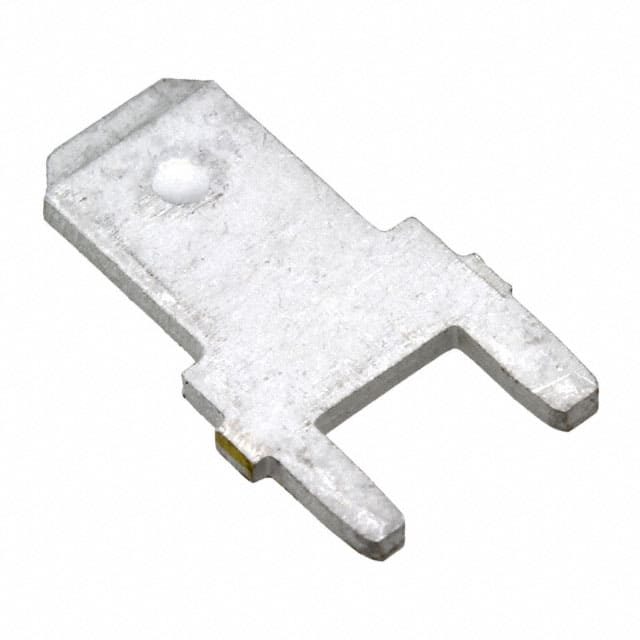

The TE Connectivity 1217057-1 is a non-insulated male quick connect tab terminal designed for reliable solder connections. The part features a brass contact with a tin finish, ensuring good conductivity and corrosion resistance.
The terminal has a tab width of 0.187" (4.75mm) and a tab thickness of 0.032" (0.81mm). It is configured for through-hole mounting with solder termination. The overall length is 12.37mm (0.487").
This quick connect tab is suitable for applications requiring a standard male tab interface for power or signal distribution, particularly where non-insulated terminations are acceptable.
The mounting type is Through Hole.
The tab width is 0.187" (4.75mm).
No, it is a non-insulated terminal.
