| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,053 pcs
|
6053 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Connector Type | |
| Contact Type | |
| Fastening Type | |
| Housing Color | |
| Industrial Grade | |
| Ingress Protection | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Orientation | |
| Shell Material | |
| Shielding | |
| Type |

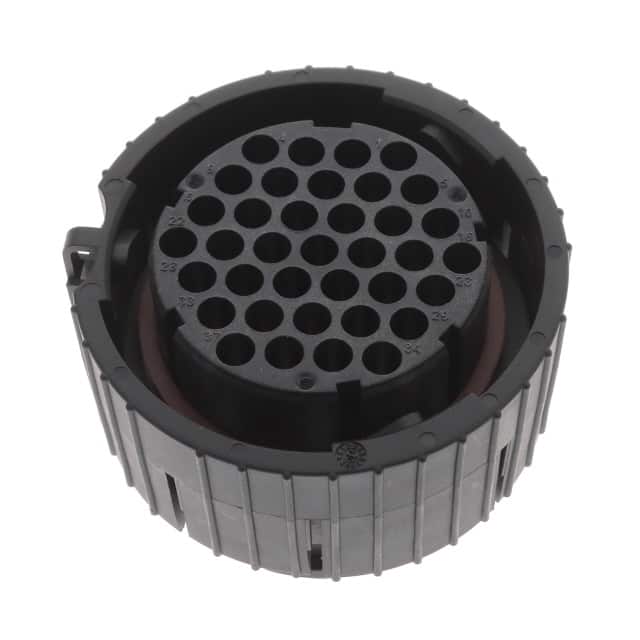

This circular connector plug housing from ITT Cannon is designed for female socket contacts. It features 37 positions and a crimp contact type, making it suitable for multi-pin connections. The housing is made of polyamide (PA66) nylon 6/6 glass-filled material, providing durability and thermal resistance. The black housing color is standard for this series.
The connector offers a free hanging (in-line) mounting style, ideal for cable-to-cable or cable-to-panel applications where a fixed panel mount is not required. The bayonet locking mechanism ensures quick and secure mating. The housing is unshielded and rated IP67 for dust tight and waterproof protection, suitable for harsh environments.
This product is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited). The shell material and construction are designed for reliable performance in industrial and commercial applications. The part is available as a plug housing only, without contacts, allowing users to select the appropriate crimp contacts separately.
| Qty | Low | High |
|---|---|---|
| 1+ | $26.68 | $26.68 |
| 10+ | $22.67 | $22.67 |
| 25+ | $21.25 | $21.25 |
| 50+ | $20.23 | $20.23 |
| 100+ | $19.27 | $19.27 |
| 250+ | $17.94 | $17.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This plug housing has 37 positions.
Free hanging (in-line) mounting.
IP67 - Dust tight and waterproof.
Bayonet lock.
Polyamide (PA66), Nylon 6/6, Glass Filled.
No, it is unshielded.
Crimp contacts are used.
