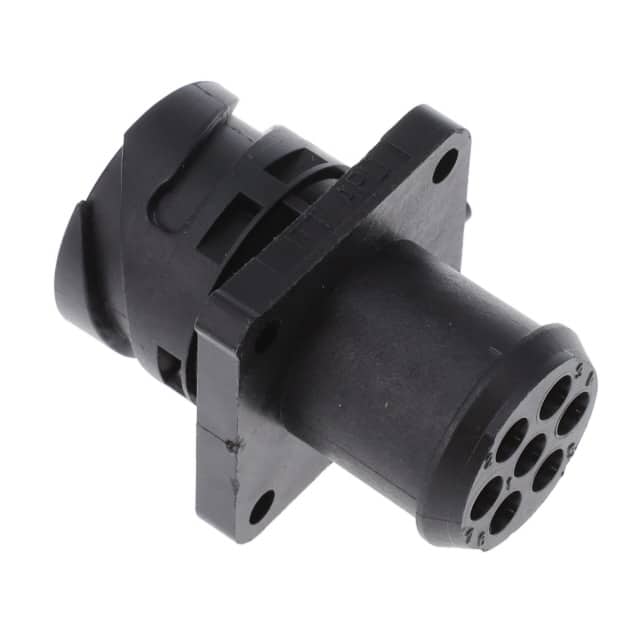

The ITT Cannon 121583-0020 is a 7-position receptacle housing from the APD series, designed for heavy-duty applications per ISO 15170 and DIN 72585. It accepts male pins and features a glass-filled PBT shell with a black housing color. The connector uses a quick-mating three-point bayonet coupling system with audible and tactile feedback, and includes a coupling nut for secure connection. Mounting is panel mount with a flange, and the housing is unshielded.
Electrical ratings include 48 V DC operating voltage, 1000 V AC test voltage, and 25 A continuous current. Contact resistance is 3 mOhm, insulation resistance is 5000 MOhm. The housing supports crimp contacts with wire gauge range 28-0 AWG. Operating temperature range is -40°C to 140°C, and it is rated IP69K for ingress protection. The seal material is HNBR. It is rated for 50 mating cycles and can withstand vibration of 30g at 147-500Hz and 20g at 500-2000Hz.
Typical applications include sensors, ABS brake control systems, valve actuators, magnetic vehicle control systems, and vehicle-use monitoring equipment. The APD series is resistant to brake and transmission fluids, oil, grease, salt, dirt, and mud, making it suitable for trucking and industrial environments.
7 positions.
25 A.
48 V DC operating voltage, with a test voltage of 1000 V AC.
Panel mount with flange.
IP69K.
-40°C to 140°C.
Polybutylene Terephthalate (PBT), glass filled.
