| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Material | |
| Actuator Type | |
| Bushing Thread | |
| Circuit | |
| Current Rating (Amps) | |
| Features | |
| Housing Material | |
| Illumination | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Panel Cutout Dimensions | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Torque | |
| Voltage Rating |

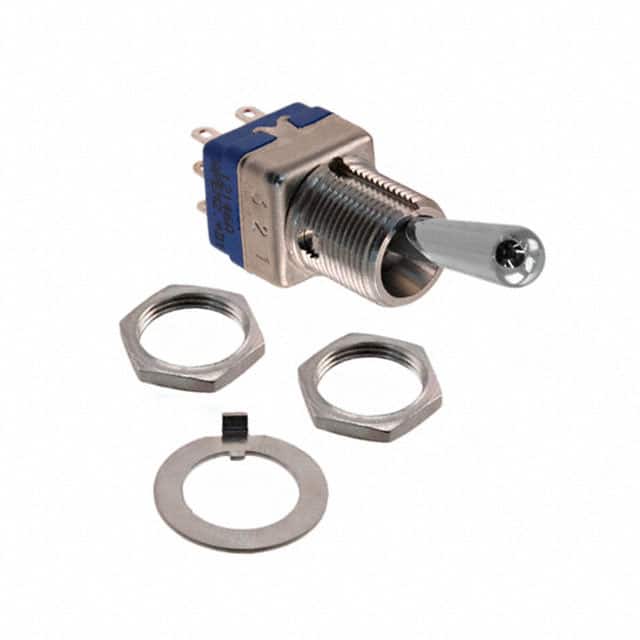

The APEM Inc. 12146A is a professional-grade toggle switch from the 12000 series, designed for demanding applications in defense, telecommunications, and other high-specification environments. This DPDT (Double Pole, Double Throw) switch features a robust construction with a brass nickel-plated bushing and housing, and diallyl phthalate (DAP) case.
With a current rating of 4A at 30VDC for silver contacts and a minimum load capability of 10mA at 50mV, the 12146A ensures reliable performance. It boasts a high insulation resistance of 1,000 MΩ minimum at 500VDC and a dielectric strength of 1,000 Vrms between terminals. The operating temperature range is -40°C to +85°C, making it suitable for various environmental conditions.
This panel mount switch features solder lug terminals for secure connections and a standard round actuator. The bushing thread is 15/32-32, and it requires a panel cutout diameter of 12.50mm. The epoxy sealed terminals provide additional protection against environmental factors. The switch function is ON-ON, and it is non-illuminated.
Meeting MIL specifications and CECC approvals, the 12146A is built for durability and smooth mechanical operation. Its design includes options for front panel sealing and locking levers, enhancing its versatility for professional use.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The APEM 12146A toggle switch has a maximum current/voltage rating of 4A 30VDC for silver contacts and 100mA 30VDC for gold contacts.
The operating temperature range for the APEM 12146A toggle switch is -40°C to +85°C.
The APEM 12146A switch uses solder lug terminals.
The RoHS status of the APEM 12146A toggle switch is RoHS3 Compliant.
