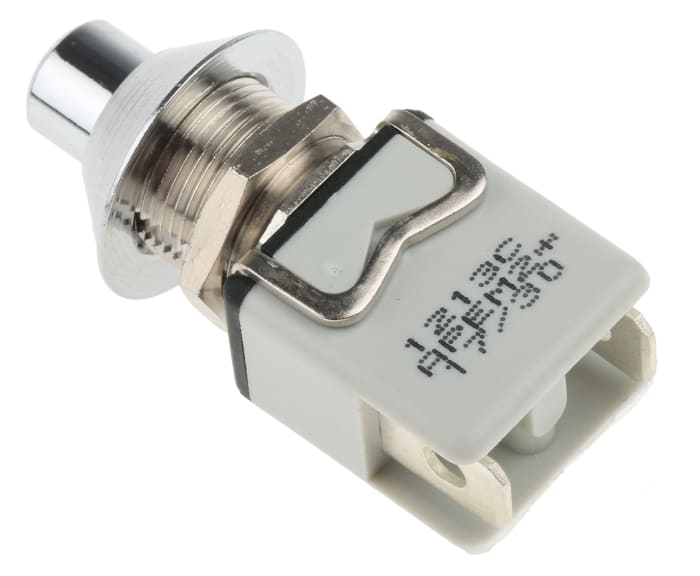

1213MC8 This APEM Inc. 1213MC8 is a momentary push button switch with SPST contacts. It features a 12.2mm panel cutout and solder terminals for easy installation.
Mfr Part #:

1213MC8

Available from 1 distributors
Mfr Name: APEM Inc.
APEM Inc.
This APEM Inc. 1213MC8 is a momentary push button switch with SPST contacts. It features a 12.2mm panel cutout and solder terminals for easy installation.
✓ Total Stock: 1 pcs
$ Price Range: $0.10

1213MC8 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1213MC8 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Style
Contact Material
Contact Resistance
Insulation Resistance
Terminal Type
View Similar Products (0)

1213MC8 Description

Short technical summary and product information.

The APEM Inc. 1213MC8 is a momentary push button switch from the 1200M series. Designed for panel mounting, it offers a single pole, single throw (SPST) contact configuration.



Key electrical specifications include a DC voltage rating of 24V and an AC voltage rating of 250V. The switch has a contact current rating of 2A and features a plunger-style actuator. The panel cutout size required is 12.2mm, and it utilizes solder terminals for connection.



Operating within a temperature range of -20°C to 55°C, this switch is built for reliable performance. The contact material is silver, and it boasts a mechanical life of 10,000 operations. The depth behind the panel is 22mm, with an M12 x 0.75 bush thread for secure mounting.

1213MC8 Quick Information

Product Type: Push Button Switch
Series: 1200M
Canonical Name: APEM Inc. 1200M Series Push Button Switch, Momentary, Panel Mount, SPST
Subcategory: Push Button Switches & Components

1213MC8 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1213MC8 Estimated Pricing

Qty Low High
1+ $0.10 $0.10

Estimated market price range - modelled values for guidance only, not live distributor offers.

1213MC8 Features

  • Momentary action push button switch.
  • Single Pole Single Throw (SPST) contacts.
  • 12.2 mm panel cutout size.
  • 24V DC / 250V AC voltage rating.
  • Panel mount with solder terminals.

1213MC8 Applications

  • Ideal for control panel interfaces.
  • Suitable for industrial equipment.
  • Used in electronic device controls.
  • General purpose momentary switching.

1213MC8 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the panel cutout size for the 1213MC8?

The panel cutout size is 12.2 mm.

What is the switch operation type of the 1213MC8?

The switch operation is momentary.

What is the contact configuration of the 1213MC8?

The contact configuration is SPST.

What are the electrical ratings for the 1213MC8?

It is rated for 24 V dc and 250 V ac with a contact current of 2A.

What is the maximum operating temperature of the 1213MC8?

The maximum operating temperature is 55°C.

Is the 1213MC8 RoHS compliant?

RoHS3 compliant, but verification status is low.
