| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Style | |
| Contact Material | |
| Contact Resistance | |
| Country of Origin | |
| Failure Rate | |
| Insulation Resistance | |
| Operating Temperature | |
| Terminal Type |

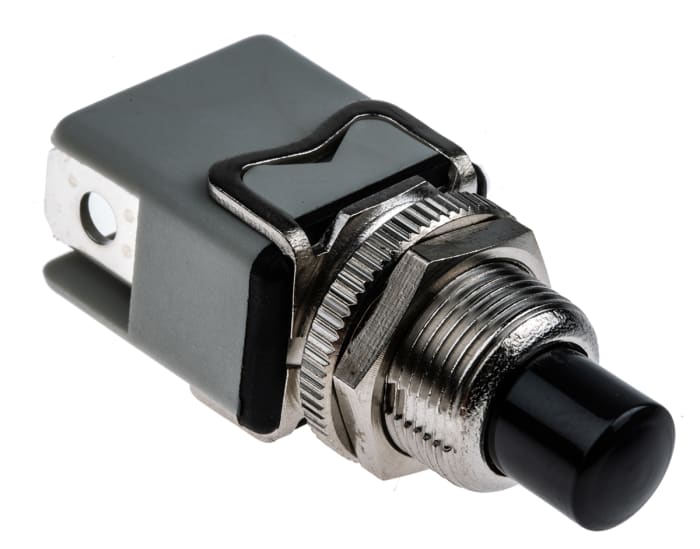

This APEM Inc. 1200 Series push button switch, model 1213C BLACK, offers a momentary action with a single pole, single throw (SPST) contact configuration. It is designed for panel mounting and features a black, round actuator.
The switch has a panel cutout size of 12.2 mm and requires a depth of 22mm behind the panel. The bush thread is M12 x 0.75. Electrical specifications include a contact DC voltage rating of 12V dc and a contact AC voltage rating of 125V ac. The switch contact current is rated at 2A.
Further technical details from the manufacturer indicate a contact rating of 4A @ 250Vac, 8A @ 125Vac, and 4A @ 24Vdc. It has a contact resistance of 10mΩ, insulation resistance of 1000MΩ min. @ 500Vdc, and a dielectric strength of 2000Vrms. The contact material is silver, and the mechanical life is rated for 10000 operations. The operating temperature range is from -20°C to +55°C. The country of origin is France.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The APEM 1213C BLACK switch has a Single Pole Single Throw (SPST) contact configuration.
The panel cutout size required for the APEM 1213C BLACK switch is 12.2 mm.
The operating temperature range for the APEM 1213C BLACK switch is -20°C to +55°C.
The APEM 1213C BLACK switch is rated for 125V ac and 12V dc.
The APEM 1213C BLACK switch has a contact rating of 4A @ 250Vac, 8A @ 125Vac, and 4A @ 24Vdc.
