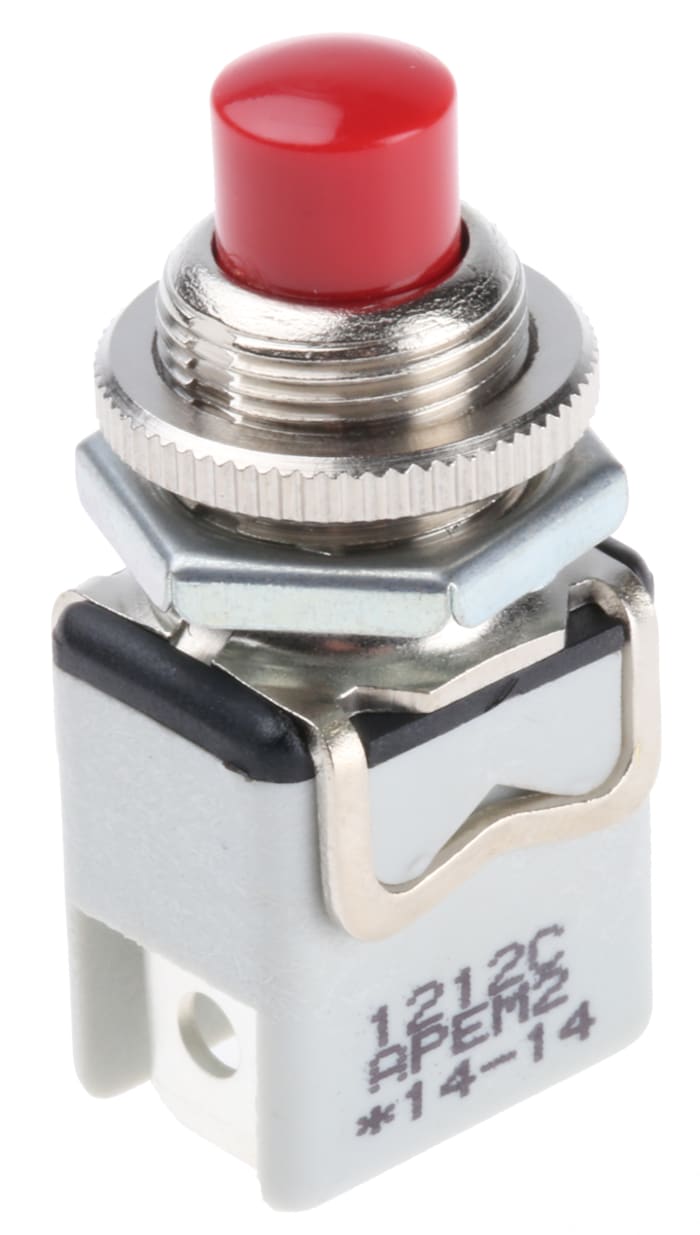

1212C This APEM Inc. 1212C RED is a momentary push button switch with a Single Pole Single Throw (SPST) contact configuration. It is designed for panel mounting with a 12.2mm cutout size.
Mfr Part #:

1212C

Available from 1 distributors
Mfr Name: APEM Inc.
APEM Inc.
This APEM Inc. 1212C RED is a momentary push button switch with a Single Pole Single Throw (SPST) contact configuration. It is designed for panel mounting with a 12.2mm cutout size.
✓ Total Stock: 2 pcs
$ Price Range: $0.75

1212C Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1212C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Style
Contact Material
Contact Resistance
Country of Origin
Insulation Resistance
Operating Temperature
SVHC Present
Terminal Type
View Similar Products (0)

1212C Description

Short technical summary and product information.

The APEM Inc. 1212C RED is a momentary push button switch from the 1200 series, featuring a red actuator and a cylinder style. It offers a Single Pole Single Throw (SPST) contact configuration, making it suitable for various switching applications.



Designed for panel mounting, this switch requires a 12.2mm diameter cutout and has a depth of 22mm behind the panel. The terminals are of the solder type for secure connections. The operating temperature range is from -20°C to 55°C, and it has a mechanical life of 10,000 operations.



Key electrical specifications include a contact rating of up to 4A at 250Vac and 4A at 24Vdc, with a contact resistance of 10mΩ. The insulation resistance is a minimum of 1000MΩ at 500Vdc, and it has a dielectric strength of 2000Vrms. The switch is RoHS3 compliant and has an MSL of 1.

1212C Quick Information

Product Type: Push Button Switch
Series: 1200
Canonical Name: APEM Inc. 1212C RED Push Button Switch, Momentary, SPST
Subcategory: Toggle Switches

1212C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1212C Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

1212C Features

  • Momentary action push button switch.
  • Single Pole Single Throw (SPST) configuration.
  • 12.2mm panel cutout size.
  • Operates from -20°C to 55°C.
  • Panel mount with solder terminals.

1212C Applications

  • Ideal for control panel interfaces.
  • Suitable for industrial equipment.
  • Used in electronic device controls.
  • General purpose switching applications.

1212C FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the APEM 1212C RED switch?

The operating temperature range is from -20°C to 55°C.

What is the panel cutout size required for this push button switch?

The panel cutout size is 12.2mm.

What is the contact configuration of the APEM 1212C RED switch?

The contact configuration is SPST (Single Pole Single Throw).

What is the contact rating of the APEM 1212C RED switch?

The contact rating is 4A @ 250Vac, 8A @ 125Vac, and 4A @ 24Vdc.

What is the RoHS status of the APEM 1212C RED switch?

The RoHS status is RoHS3 Compliant.
