| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,253 pcs
|
1253 pcs | On Request | 1 | On Request | On Request | 2046+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Length | |
| Mounting Hole Diameter | |
| Mounting Type | |
| SVHC Present | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination |

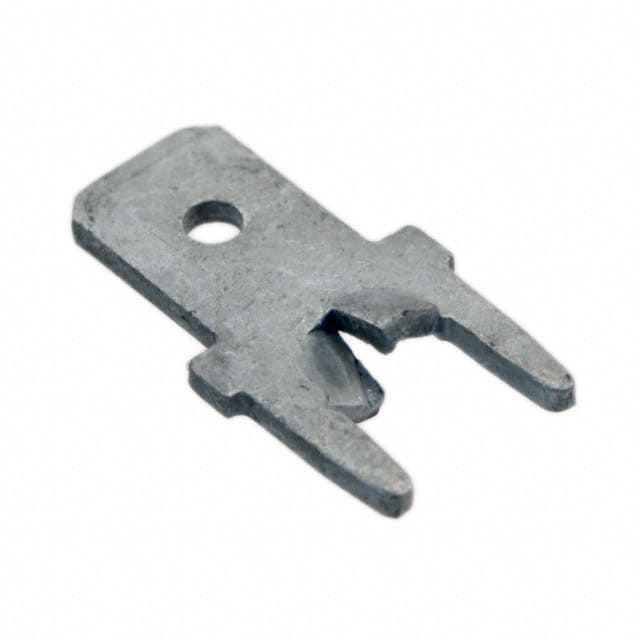

The Keystone Electronics 1212-ST is a non-insulated male quick connect tab designed for through hole solder mounting. This terminal features a standard 0.187" (4.75mm) tab width with a tab thickness of 0.032" (0.81mm) and a tab length of 0.250" (6.35mm), making it suitable for a wide range of quick disconnect applications.
The contact is constructed from brass with a tin plating finish, providing reliable conductivity and corrosion resistance. The overall length of the component is 12.95mm (0.510"), and it requires a mounting hole diameter of 0.052" (1.3mm) for installation. As a non-insulated terminal, it is intended for applications where insulation is not required or is provided separately.
This part is part of Keystone Electronics' Quick-Fit terminal line, which is recognized under UL File Number E201546, indicating compliance with NEMA and UL310 standards for dimensional and performance requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.19 | $0.19 |
| 10+ | $0.17 | $0.17 |
| 25+ | $0.14 | $0.14 |
| 100+ | $0.12 | $0.12 |
| 500+ | $0.10 | $0.10 |
| 1,000+ | $0.09 | $0.09 |
| 2,500+ | $0.08 | $0.08 |
| 5,000+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The tab width is 0.187" (4.75mm).
The mounting type is Through Hole with solder termination.
The contact is made of brass with a tin plating finish.
No, it is a non-insulated terminal.
The required mounting hole diameter is 0.052" (1.3mm).
