| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Length | |
| Material Thickness | |
| Mounting Hole Diameter | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| UL |

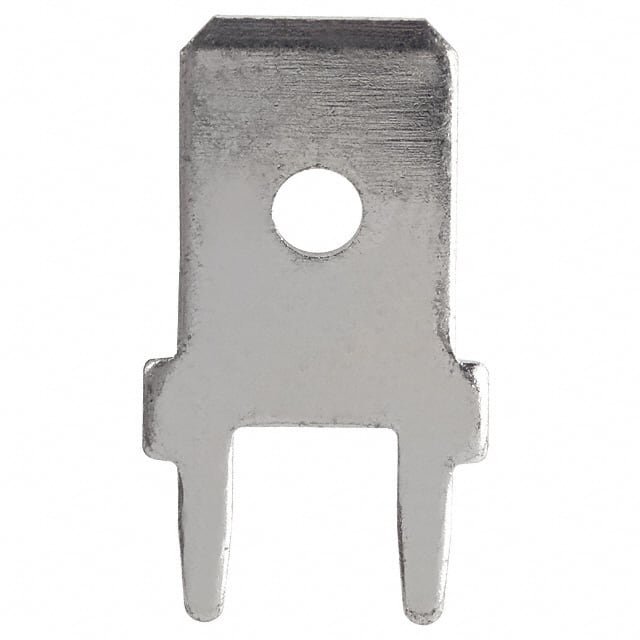

The Keystone Electronics 1212 is a male quick connect terminal designed for through-hole PCB mounting. It features a 0.187" (4.75mm) tab width, 0.032" (0.81mm) tab thickness, and 0.245" (6.22mm) tab length. The overall length of the terminal is 12.70mm (0.500").
Constructed from brass with tin plating, the terminal is non-insulated and terminated via solder. The required mounting hole diameter is 0.052" (1.3mm), as inferred from similar catalog numbers. This part is UL recognized under file E201546 for Quick-Fit terminals, meeting NEMA and UL310 standards.
Typical applications include PCB-mounted quick disconnect connections in power distribution, control boards, automotive wiring, and industrial equipment. The terminal provides a reliable, low-resistance connection for repeated mating cycles.
Through hole solder mounting.
0.187 inches (4.75mm).
0.032 inches (0.81mm).
0.245 inches (6.22mm).
12.70mm (0.500 inches).
Brass contact with tin plating.
Yes, UL recognized under file E201546 (Quick-Fit terminals).
