| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
99,431 pcs
|
99431 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
45,979 pcs
|
45979 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request | |
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
205 pcs
|
205 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Current | |
| Halogen Free | |
| Hold Current (I_hold) | |
| Length | |
| Maximum Fault Current (I_max) | |
| Maximum Voltage (V_max) | |
| Minimum Resistance (R_min) | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Post-Trip Resistance (R_1max) | |
| Power Dissipation (P_D) | |
| Resistance | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Thickness (Max) | |
| Time to Trip | |
| Trip Current (I_trip) | |
| Type | |
| Voltage | |
| Width |

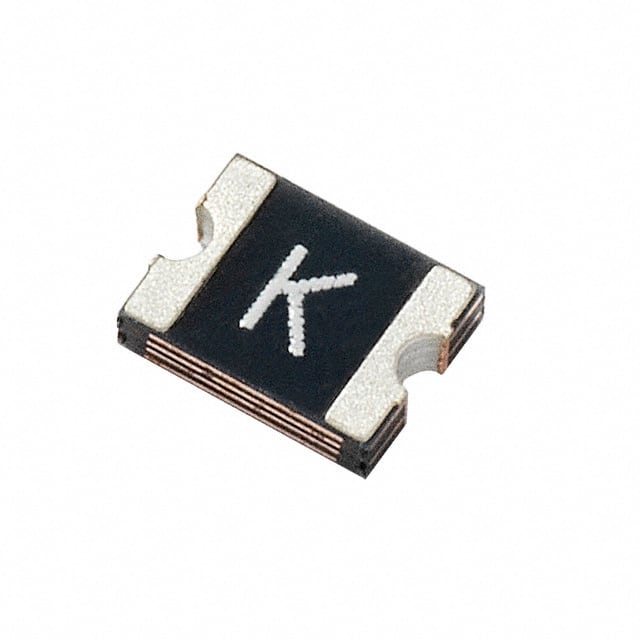

The 1210L010WR is a polymeric PTC resettable fuse from Littelfuse's 1210L series. It offers a hold current of 100 mA and a trip current of 300 mA at 20°C still air. The maximum voltage rating is 30 V with a maximum fault current of 10 A. Typical power dissipation in the tripped state is 0.6 W. The time to trip is 1.5 seconds at 0.5 A. Initial resistance is 1.6 Ω minimum, and post-trip resistance is 15 Ω maximum. Operating temperature ranges from -40°C to 85°C. The device is housed in a 1210 (3225 Metric) concave surface mount package. It is RoHS3 compliant and halogen-free. Suitable for overcurrent protection in space-constrained applications such as portable electronics and USB ports.
100 mA.
30 V.
10 A.
1.5 seconds at 0.5 A, 20°C still air.
1210 (3225 Metric), concave surface mount.
-40°C to 85°C.
Yes, RoHS3 compliant and halogen-free.
