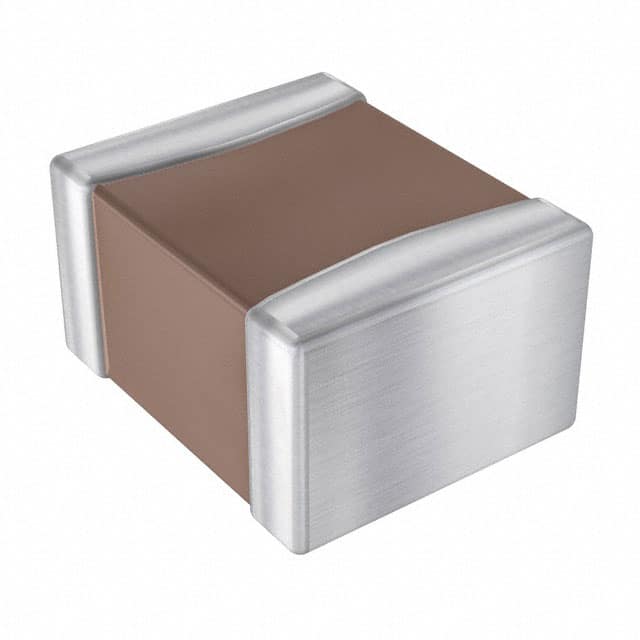

The Kyocera AVX 1210GC821KAT2A is a high voltage multilayer ceramic capacitor (MLCC) designed for applications such as snubbers in high frequency power converters, resonators in SMPS, and high voltage coupling or DC blocking. This capacitor offers a capacitance of 820 pF with a voltage rating of 2000V (2kV). It features an X7R temperature coefficient, providing a capacitance change of ±15% over an operating temperature range of -55°C to 125°C.
This component is housed in a 1210 (3225 metric) surface mount package with dimensions of 3.30mm by 2.50mm and a maximum thickness of 1.80mm. The termination is plated with nickel and tin, making it RoHS compliant. The capacitor is intended for general purpose applications and features high voltage capability. It is supplied on a 7-inch reel for automated assembly.
Designers should note that for chip sizes 1210 and larger, reflow soldering is recommended. The temperature gradient during heating or cooling should not exceed 4°C per second, with preheat temperature within 50°C of the peak soldering temperature. Protective surface coating may be required to prevent external arcing at high voltages.
The capacitance is 820 pF.
The voltage rating is 2000V (2kV).
The tolerance is ±10%.
The temperature coefficient is X7R.
It comes in a 1210 (3225 Metric) surface mount package.
The operating temperature range is -55°C to 125°C.
The termination is plated Ni and Sn, and the part is noted as RoHS compliant in the datasheet, but this compliance has not been independently verified.
