| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
280 pcs
|
280 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Features | |
| Lead Spacing | |
| Maximum Pressure | |
| Mounting Type | |
| Operating Pressure | |
| Operating Temperature | |
| Output | |
| Output Type | |
| Port Size | |
| Port Style | |
| Pressure Type | |
| Tape & Reel | |
| Termination Style |

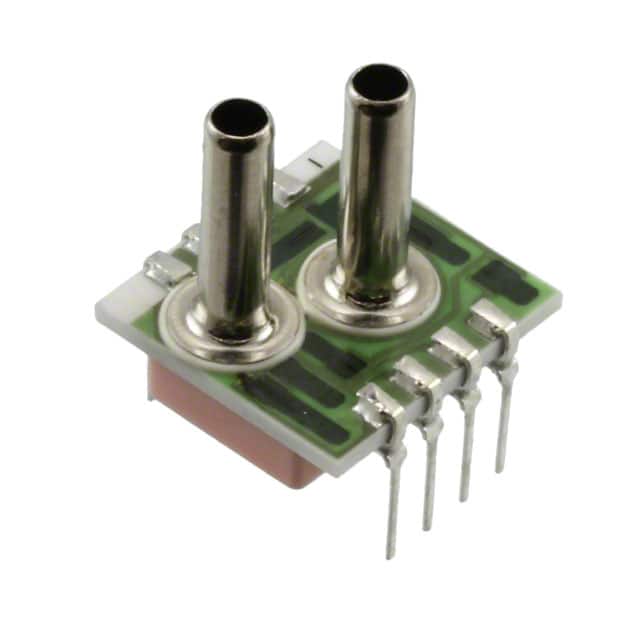

The TE Connectivity 1210A-005D-3L is a differential pressure sensor designed for board mount applications. It offers a 5 PSI operating pressure range with a maximum pressure of 20 PSI, and a port size of 0.13" (3.23mm) tube.
This sensor utilizes a Wheatstone bridge output, providing a voltage range of 0 mV to 100 mV. It is temperature compensated and operates within a wide temperature range of -40°C to 125°C. The sensor is housed in an 8-DIP module package and features a through-hole mounting type with PC pin termination.
Key specifications include a differential pressure type and a barbless port style. The sensor is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. Its applications are suitable for board-level integration where precise pressure monitoring is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating pressure range is 5 PSI (34.47kPa).
The maximum pressure is 20 PSI (137.9kPa).
The output type is a Wheatstone bridge.
The output voltage range is 0 mV to 100 mV.
The operating temperature range is -40°C to 125°C.
The sensor is mounted using the through-hole method.
It uses an 8-DIP module package.
