| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Climatic Category | |
| Configuration | |
| Current | |
| Dielectric Strength (Minimum @ 1 minute) | |
| Filter Type | |
| Flammability Rating | |
| Frequency | |
| Industrial Grade | |
| Lead Style | |
| Leakage Current | |
| Mounting Type | |
| Operating Temperature | |
| Overload Capability | |
| Termination Style | |
| Voltage | |
| Weight |

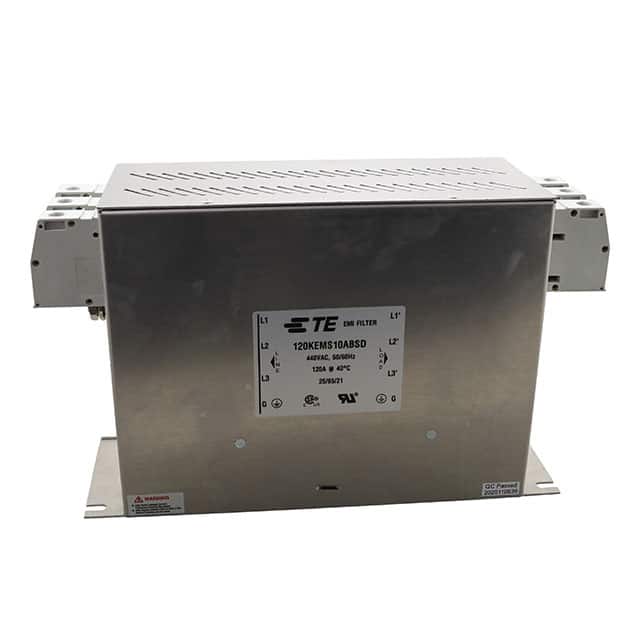

The TE Connectivity 120KEMS10ABSD is a three phase high performance EMI filter from the KEM-BS series. It is rated for 120A continuous current at 40°C and a maximum continuous operating voltage of 440VAC. The filter uses a single stage delta configuration and is designed for chassis mounting with terminal block termination.
Key electrical specifications include an operating frequency of 50/60 Hz, leakage current of 10 mA, and overload capability of 135% of rated current for 15 minutes. Dielectric strength is tested at 2632 VDC line-to-ground and 1892 VDC line-to-line for 1 minute. The operating temperature range is -25°C to 85°C with a climatic category of 25/85/21.
The filter is UL recognized and CSA certified, with a flammability rating of UL 94 V-0. It weighs 4 kg and is suitable for applications such as industrial automation, HVAC, and CNC machines. The bookshelf design allows for space-saving installation in motor drive applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $770.82 | $770.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
440 VAC.
-25°C to 85°C.
RoHS3 Compliant (unverified).
120 A.
10 mA.
Chassis Mount.
CSA and UL.
