120KEHD10ABSD Three phase EMI filter rated for 120A at 440VAC. Dual stage delta configuration with chassis mount and terminal block termination.
Mfr Part #:

120KEHD10ABSD

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
Three phase EMI filter rated for 120A at 440VAC. Dual stage delta configuration with chassis mount and terminal block termination.
✓ Total Stock: 1 pcs
$ Price Range: $846.71

120KEHD10ABSD Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

120KEHD10ABSD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Configuration
Current
Filter Type
Frequency
Lead Style
Mounting Type
Operating Temperature
Termination Style
Voltage
Weight
View Similar Products (0)

120KEHD10ABSD Description

Short technical summary and product information.

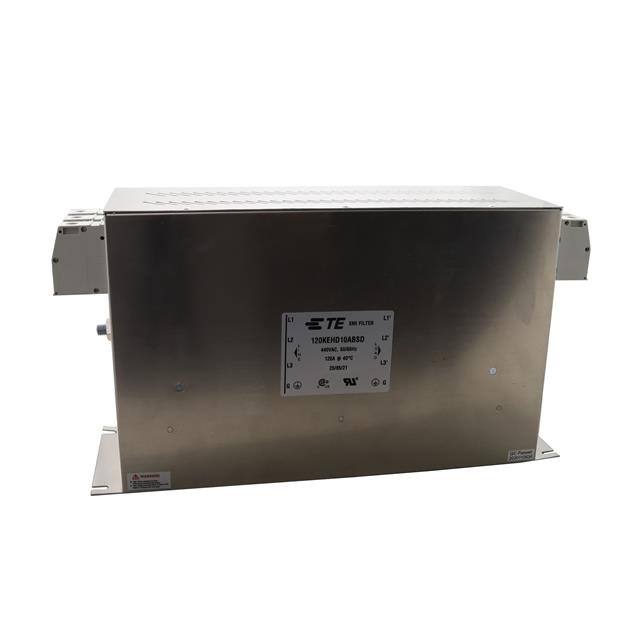

The TE Connectivity 120KEHD10ABSD is a three phase very high performance EMI filter from the KEH-BS series. It features a dual stage delta configuration designed for motor drive applications requiring minimal space and convenient installation. The filter is rated for a continuous operating voltage of 440VAC and a current of 120A at 40°C. It operates at 50/60Hz and has a leakage current of 15mA. The filter can handle an overload of 135% of rated current for 15 minutes. High potential test voltages are 2632VDC line-to-ground and 1892VDC line-to-line for 1 minute. The operating temperature range is -25°C to +85°C with a climatic category of 25/85/21. The filter is chassis mounted with terminal block terminations and weighs 4 kg. It is UL recognized and CSA certified, complying with UL 60939-3 and CSA 22.2 No.8-13. The flammability rating is UL 94 V-0. Typical applications include AC/DC drives, HVAC equipment, robotics, and UPS systems.

120KEHD10ABSD Quick Information

Product Type: Power Line Filter Module
Series: KEH-BS
Canonical Name: TE Connectivity 120KEHD10ABSD Three Phase Delta Two Stage EMI Filter, 120A, 440VAC
Subcategory: Three Phase EMI Filter

120KEHD10ABSD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

120KEHD10ABSD Estimated Pricing

Qty Low High
1+ $846.71 $846.71

Estimated market price range - modelled values for guidance only, not live distributor offers.

120KEHD10ABSD Features

  • Rated for 120A at 440VAC continuous operation.
  • Dual stage delta configuration for high performance.
  • Chassis mount with terminal block termination.
  • UL 94 V-0 flammability rated enclosure.
  • Operating temperature range -25°C to +85°C.

120KEHD10ABSD Applications

  • Ideal for AC/DC motor drive applications.
  • Used in HVAC equipment and robotics.
  • Suitable for uninterruptible power supplies (UPS).

120KEHD10ABSD FAQs

7 frequently asked questions generated from this part’s specifications.
What is the rated voltage of the 120KEHD10ABSD?

440 VAC.

What is the operating temperature range?

-25°C to +85°C.

Is the 120KEHD10ABSD RoHS compliant?

RoHS3 Compliant (unverified).

What is the leakage current?

15 mA.

What is the high potential test voltage?

2632 VDC line-to-ground and 1892 VDC line-to-line for 1 minute.

What approvals does the filter have?

UL recognized and CSA certified.

What is the weight of the filter?

4 kg.
