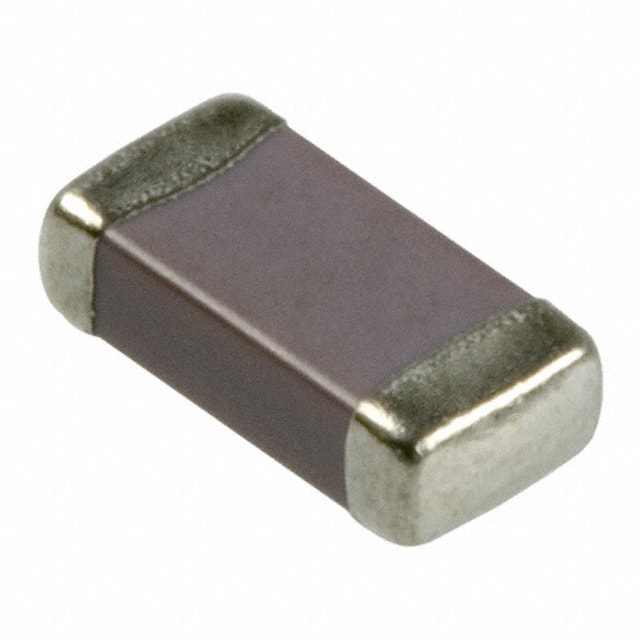

1206ZD106KAT2A Kyocera AVX 1206ZD106KAT2A is a 10 µF, 10V, X5R dielectric, ±10% tolerance MLCC in a 1206 (3216 Metric) surface mount package.
Mfr Part #:

1206ZD106KAT2A

Available from 3 distributors
Mfr Name: Kyocera AVX
Kyocera AVX
Kyocera AVX 1206ZD106KAT2A is a 10 µF, 10V, X5R dielectric, ±10% tolerance MLCC in a 1206 (3216 Metric) surface mount package.
✓ Total Stock: 981 pcs

1206ZD106KAT2A Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Non-Authorised Inventory information
795 pcs
795 pcs On Request 1 On Request On Request On Request On Request On Request
Non-Authorised Inventory information
100 pcs
100 pcs On Request 1 On Request On Request On Request On Request On Request
Non-Authorised Inventory information
86 pcs
86 pcs On Request 1 On Request On Request 1003 On Request On Request

1206ZD106KAT2A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
Length
Mounting Type
Operating Temperature
Operating Temperature Range
Package / Case
SVHC Present
Tape & Reel
Temperature Coefficient
Termination Style
Thickness (Max)
Tolerance
Voltage
Voltage Rating
Width

1206ZD106KAT2A Description

Short technical summary and product information.

The Kyocera AVX 1206ZD106KAT2A is a surface-mount multilayer ceramic capacitor (MLCC) with a capacitance of 10 µF and a voltage rating of 10V. It uses X5R dielectric, an EIA Class II material that provides a capacitance change of ±15% over the operating temperature range of -55°C to +85°C.



This capacitor is well-suited for general-purpose applications such as decoupling and filtering in power supply and signal circuits. The component is packaged in a standard 1206 (3216 Metric) case size with dimensions of 3.20mm x 1.60mm and a maximum thickness of 1.78mm. Terminations are plated with nickel and tin for reliable solderability.



The part number suffix indicates a 13" reel packaging for automated assembly. Dissipation factor is limited to 12.5% maximum for this 10V rating per the datasheet, and insulation resistance is 10,000 MΩ or 500 MΩ-µF, whichever is less.

1206ZD106KAT2A Quick Information

Product Type: MLCC Capacitor
Series: Standard MLCC
Canonical Name: Kyocera AVX 1206ZD106KAT2A, 10 µF, 10V, X5R, ±10%, 1206 Surface Mount MLCC Ceramic Capacitor
Subcategory: Multilayer Ceramic Capacitor (MLCC)

1206ZD106KAT2A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1206ZD106KAT2A Features

  • 10 µF capacitance, 10V DC rating.
  • X5R dielectric, ±15% capacitance change over temperature.
  • ±10% capacitance tolerance.
  • 1206 (3216 Metric) surface-mount package.
  • Operating temperature range -55°C to +85°C.

1206ZD106KAT2A Applications

  • Power supply decoupling in portable electronics.
  • Signal filtering in consumer audio and video devices.
  • Bypass capacitor for ICs in low-voltage digital circuits.
  • General-purpose bulk capacitance on PCB designs.
  • DC blocking in audio and data lines.

1206ZD106KAT2A FAQs

4 frequently asked questions generated from this part’s specifications.
What is the capacitance and voltage rating of 1206ZD106KAT2A?

The capacitance is 10 µF and the voltage rating is 10V DC.

What is the tolerance of this capacitor?

The capacitance tolerance is ±10%.

What is the temperature coefficient of this MLCC?

The dielectric is X5R (EIA Class II), with a capacitance change of ±15% from -55°C to +85°C.

What is the package size for 1206ZD106KAT2A?

The package/case is 1206 (3216 Metric) with dimensions 3.20mm x 1.60mm and a maximum thickness of 1.78mm.
