| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,440 pcs
|
1440 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Series | |
| Battery Type, Function | |
| Height Above Board | |
| Mounting Type | |
| Number of Cells | |
| Style | |
| Termination Style |

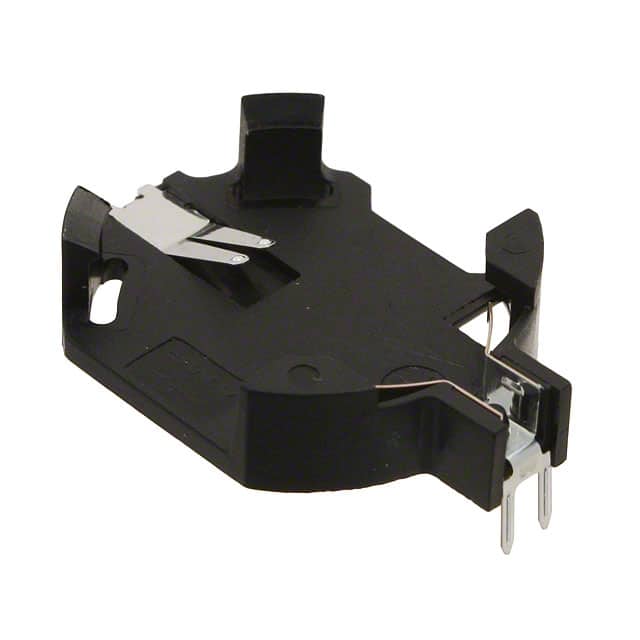

The TE Connectivity 120591-1 is a coin cell battery holder designed for 20mm diameter cells, specifically the 2032 series. This single-cell holder uses an open style construction with PC pin terminals for through hole PCB mounting.
With a height above board of 6.32mm (0.249 inches), this holder provides a low-profile solution for battery retention. The open holder design allows for easy battery insertion and removal, suitable for applications requiring periodic battery replacement.
The through hole mounting ensures reliable mechanical attachment to the PCB, while the PC pin termination provides secure solder connections. This holder is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited).
It accepts a single 20.0mm coin cell from the 2032 series.
It uses PC Pin termination.
It requires PCB through hole mounting.
The height above board is 6.32mm (0.249 inches).
It holds one cell.
RoHS compliance is listed as RoHS3 compliant but has not been verified from a manufacturer document.
The MSL rating is 1 (unlimited).
