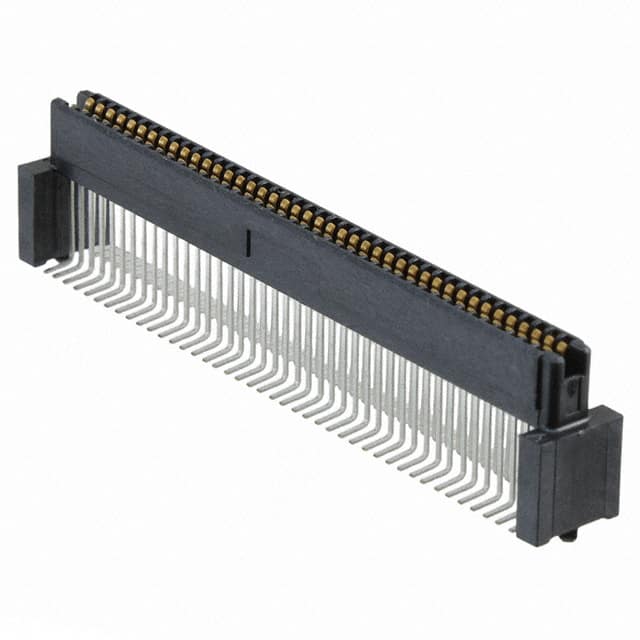

120527-2 TE Connectivity 120527-2 is a mezzanine connector plug with 84 center strip contacts arranged in 2 rows at 1.00mm pitch, designed for surface mount applications.
Mfr Part #:

120527-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 120527-2 is a mezzanine connector plug with 84 center strip contacts arranged in 2 rows at 1.00mm pitch, designed for surface mount applications.
✓ Total Stock: 6,500 pcs

120527-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,500 pcs
On Request
6500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

120527-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Height Above Board
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
Tape & Reel
View Similar Products (0)

120527-2 Description

Short technical summary and product information.

The TE Connectivity 120527-2 is a high-density mezzanine connector featuring 84 positions in a plug, center strip contact configuration. The connector has a 1.00mm pitch and two rows, providing a compact interconnection solution for parallel board stacking.



The connector is surface mount compatible and comes with gold-plated contacts with a thickness of 0.76µm, ensuring reliable electrical performance and corrosion resistance. It supports mated stacking heights of 10mm, 12mm, 13mm, and 15mm, offering flexibility in system design.



A built-in board guide aids in alignment during assembly. This connector is suitable for applications requiring dense, reliable board-to-board connections in constrained spaces.

120527-2 Quick Information

Product Type: Board-to-Board Connector
Series: FH
Canonical Name: 120527-2 – TE Connectivity Mezzanine Connector, Plug, 84 Positions, 1.00mm Pitch, Surface Mount
Subcategory: Board-to-Board, Array

120527-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

120527-2 Features

  • 84 positions in 2 rows at 1.00mm pitch.
  • Surface mount plug with center strip contacts.
  • Gold contact finish 0.76µm for reliability.
  • Supports stacking heights from 10mm to 15mm.
  • Includes board guide for assembly alignment.

120527-2 Applications

  • Used in dense board-to-board mezzanine connections.
  • Suitable for parallel PCB stacking in compact electronics.
  • Ideal for telecom and networking equipment.
  • Common in industrial control and computing modules.

120527-2 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 120527-2 have?

84 positions in 2 rows.

What is the pitch of this connector?

1.00mm.

What is the mounting type for the 120527-2?

Surface mount.

What is the contact finish and thickness?

Gold finish with 0.76µm thickness.

What stacking heights are supported?

10mm, 12mm, 13mm, and 15mm.

What type of connector is the 120527-2?

Plug, center strip contacts mezzanine connector.

What is the height above board?

8.35mm.
