| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
37 pcs
|
37 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Storage Temperature | |
| Tape & Reel |

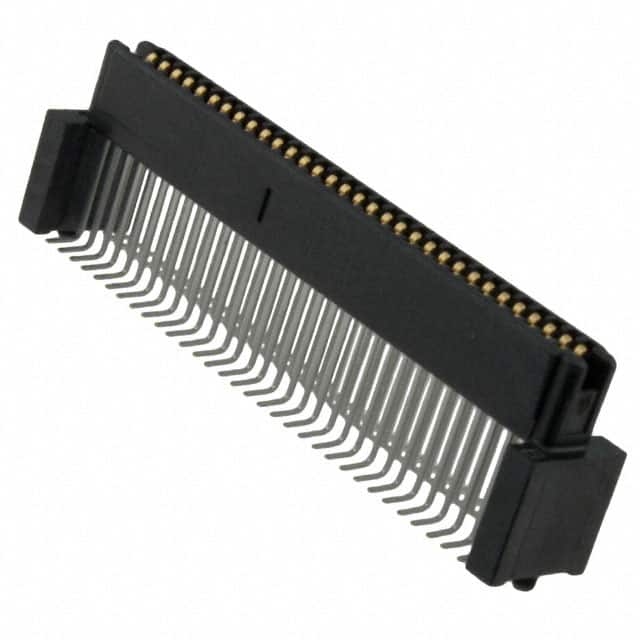

The TE Connectivity 120524-1 is a 64-position receptacle connector with outer shroud contacts designed for board-to-board mezzanine applications. It features a 2-row configuration with a 1.00mm (0.039") pitch, enabling high-density interconnections. The connector is surface mount (SMD) and has a height above board of 10.37mm (0.408"), with mated stacking heights of 14mm and 15mm. Contacts are gold-plated with a thickness of 50.0µin (1.27µm) for reliable signal integrity. The connector includes a board guide feature to assist alignment during mating. This component is suitable for applications requiring compact, high-density board stacking.
64 positions in 2 rows.
1.00mm (0.039").
Surface mount (SMD).
14mm and 15mm.
Gold with 50.0µin (1.27µm) thickness.
Yes, it includes a board guide feature.
