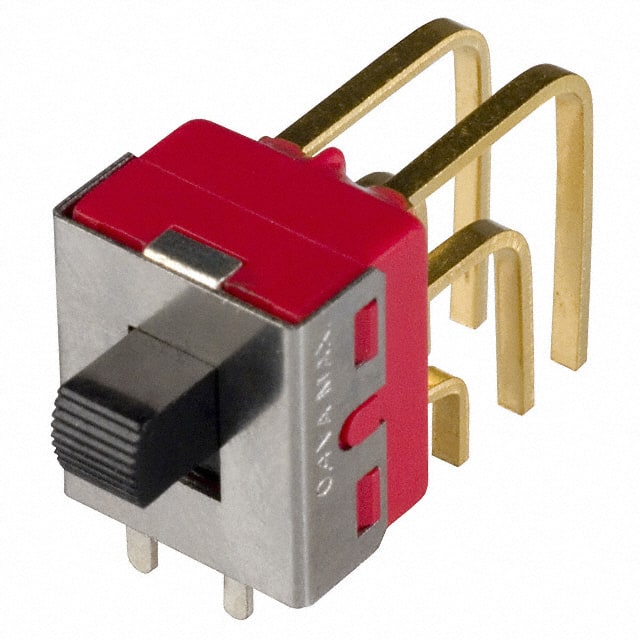

The C&K Components 1201M2S3AV2BE2 is a miniature slide switch from the 1000 Series. This DPDT (Double Pole, Double Throw) switch is designed for applications requiring reliable switching.
Key electrical specifications include a contact rating of 0.4 VA maximum at 20 V AC or DC. The switch offers a typical initial contact resistance below 10 mΩ and an insulation resistance of 1 GΩ minimum. It operates within a temperature range of -30°C to 65°C.
Constructed with a nylon actuator and stainless steel housing, this model features epoxy sealed terminals for compatibility with bottom-wash cleaning processes. The mounting type is Through Hole, Right Angle, Vertical, with a PC Pin termination style.
This series is suitable for applications in test & measurement equipment, telecommunications, and computers & peripherals industries.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 0.4 VA max. @ 20 V AC or DC for B contact material, 6 amps @ 125 V AC or 28 V DC, and 3 amps @ 250 V AC for Q contact material.
The operating temperature range is -30°C to 65°C.
It supports Through Hole, Right Angle, Vertical mounting.
The electrical life is 100,000 make-and-break cycles at full load on models with B, P contact material, and 40,000 cycles on models with G, Q or S contact material.
The contact material is Copper with a Gold finish.
