| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
115 pcs
|
115 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Material | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Timing | |
| Current Rating (Amps) | |
| Features | |
| Housing Material | |
| Insulation Resistance | |
| Mounting Type | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

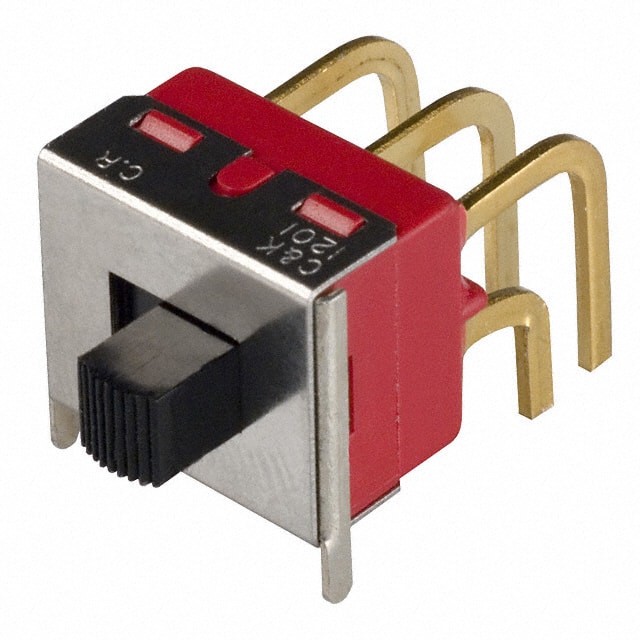

The C&K Components 1201M2S3ABE2 is a miniature slide switch from the 1000 Series, designed for applications in test & measurement equipment, telecommunications, and computers & peripherals.
This DPDT switch offers a contact rating of 0.4VA at 20V AC/DC. It features PC Pin termination and a through-hole, right-angle mounting type. The operating temperature range is -30°C to 65°C.
The switch has a gold contact finish over a copper contact material. The housing is constructed from stainless steel, and the case material is Diallyl phthalate (DAP) with a UL 94 V-0 rating. The terminals are epoxy sealed, compatible with bottom-wash cleaning processes.
Key specifications include a contact resistance below 10 mΩ typical, insulation resistance of 10⁹ Ω minimum, and dielectric strength of 1,000 Vrms minimum. The electrical life is rated for 40,000 cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 0.4VA max. @ 20V AC or DC max.
The operating temperature range is -30°C to 65°C.
It uses PC Pin termination style.
The circuit configuration is DPDT.
The voltage rating is 20 V.
