| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Ingress Protection | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shell Size | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage Rating |

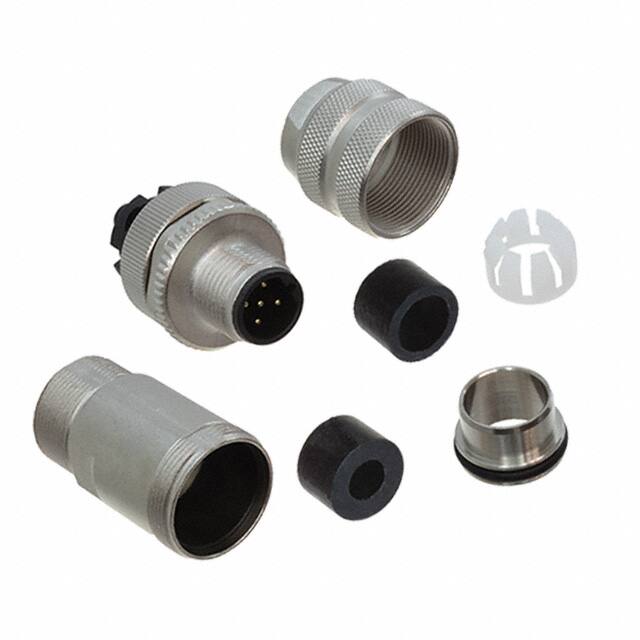

The Molex 1201000002 is a 5-position M12 circular connector receptacle featuring male pins with gold contacts. It is designed for free hanging (in-line) mounting and uses a threaded fastening mechanism with keyed orientation for secure mating.
This connector is rated for 4A current and 60V voltage, with an operating temperature range of -40°C to 85°C. The metal shell is zinc die cast and the assembly is shielded for EMI protection. It includes a backshell feature and achieves IP67 ingress protection against dust and water immersion.
Termination is via screw contacts, making it suitable for field-installable or serviceable connections in industrial automation, sensor, and actuator applications.
This is a 5-position receptacle with male pins.
Rated for 4A current and 60V voltage.
Free hanging (in-line) mounting.
IP67 — dust tight and waterproof.
-40°C to 85°C.
Zinc die cast shell with gold contact finish.
