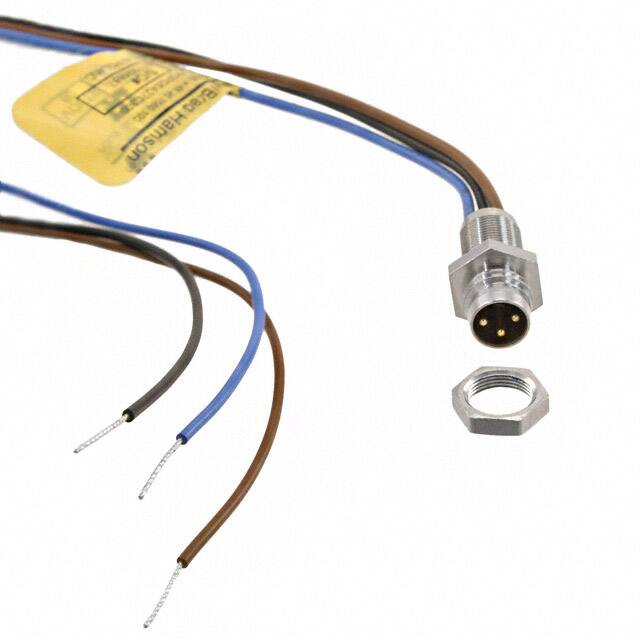

The Molex 1200900020 is a circular cable assembly featuring an M8 male receptacle (male pins) on the first end and unterminated wire leads on the second end. It has 3 positions with all contacts loaded, a keyed orientation for mating alignment, and panel mount style. The cable is made from polyvinyl chloride (PVC) and uses 24 AWG conductors. The assembly length is 300.00mm (0.98 feet) and is unshielded.
Electrically, the assembly is rated for 60V AC / 75V DC and 4A (for 3-pole configuration). The shell is nickel-plated brass, the connector face is PBT, and the O-ring is Viton. It is intended for industrial environments and has an IP67 rating, though the datasheet notes higher ratings in certain coupling conditions (IP68 coupled, IP65 snap).
The connector provides reliable connectivity in harsh environments, with a panel mount design ensuring secure installation. The wire leads allow direct termination to control panels or other equipment.
The voltage rating is 60V AC and 75V DC.
The operating temperature range is -20°C to 105°C (-4°F to 221°F) for the PVC cable.
The part is listed as RoHS3 Compliant, REACH Unaffected, and MSL Level 1. Note that this compliance data is unverified in the database.
The current rating is 4A for the 3-pole configuration.
The conductors are 24 AWG and the cable material is PVC (Polyvinyl Chloride).
The cable length is 300.00mm (0.98 feet).
The assembly is rated IP67 - Dust Tight, Waterproof. Note the datasheet specifies IP68 when coupled and IP65 when used in snap-fit mode, which may be a conflict.
