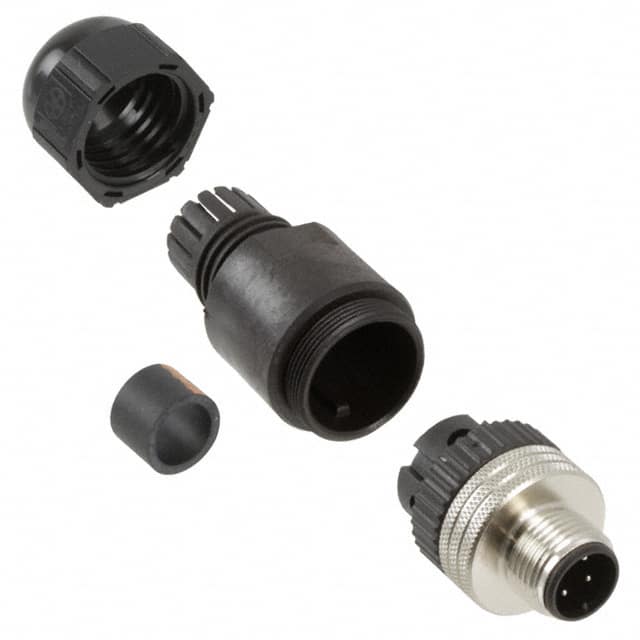

The Molex 1200710039 is a rugged circular connector designed for reliable connections in demanding environments. This receptacle accepts 4 male pins and features a threaded fastening mechanism for secure mating. The metal shell is constructed from nickel-plated brass, providing durability and corrosion resistance, while the gold plated contacts ensure low resistance and high signal integrity.
Rated for 4A current and 250V, this connector operates over a wide temperature range of -20°C to 80°C. With an IP67 ingress protection rating, it is dust tight and protected against temporary immersion in water. The free hanging (in-line) mounting style and screw termination allow for easy field installation and maintenance.
The cable opening accommodates wires from 0.161" to 0.319" (4.10mm to 8.10mm). A backshell feature is included to provide strain relief and cable support. The connector is keyed to prevent misalignment, and comes in a black/silver color scheme.
The Molex 1200710039 has 4 positions (male pins).
The current rating is 4A.
The voltage rating is 250V.
It supports free hanging (in-line) mounting.
It has an IP67 rating: dust tight and protected against temporary immersion in water.
It uses screw termination.
